- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:40L/47L/50L co2 gas cylinder
- Material:Steel, seamless steel cylinder
- Brand Name:BEYIWOD
- Use:Oxygen
- Place of origin:Shanghai,China(mainland)
- Water Capacity:5L 7L 10L steel co2 gas cylinder
- Working Pressure:150bar / 200bar portable co2 gas cylinder
- Test Pressure:250bar / 300bar steel co2 gas cylinder
- Outside Diameter:140MM/159MM steel co2 gas cylinder
- Wall thickness:4.1MM/4.7MM portable co2 gas cylinder
- Certification:ISO9809-1/ISO9809-3 steel co2 gas cylinder
- Weight without valve:7.7KG/10KG/13.5KG steel co2 gas cylinder
- Height without valve:440MM/600MM/840MM co2 gas cylinder

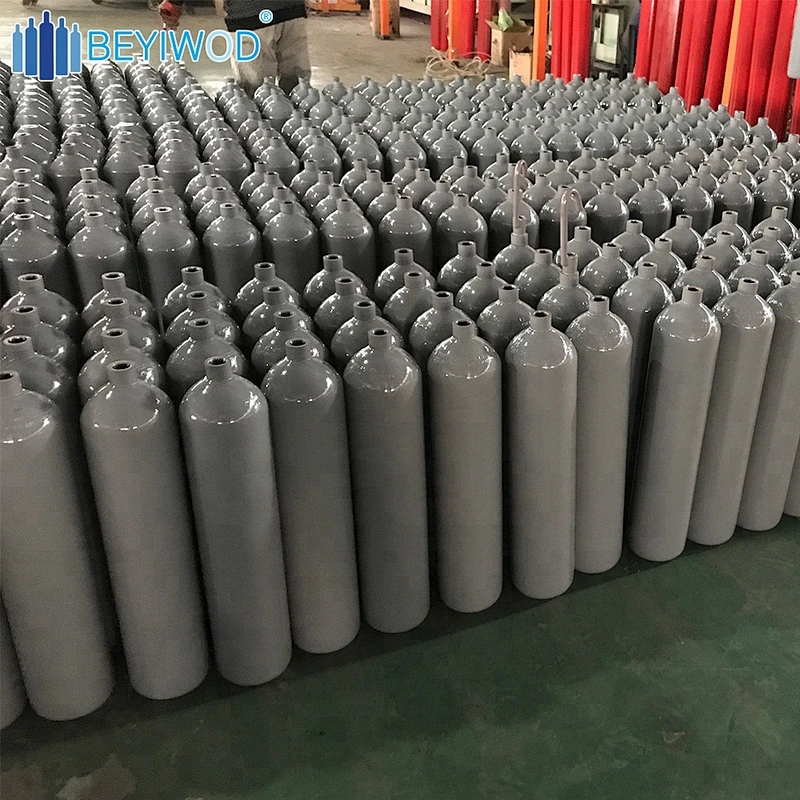

The industrial /co2 gas cylinder are all made by high quality seamless steel tube,consistent height, smoothly painting, and excellent properties, which is widely used for steel cutting, welding, electronic, medical and other fields.and are supposed to be used repeatedly for keeping argon which is mainly used for steel cutting, welding, electronic, medical and so on.Our steel cylinder size from 1.8L to 80L,all your need cylinder we all can produce.
| Type | steel cylinder for oxygen /argon/nitrogen/co2/helium gas | ||
| Water capacity | 10L | Outer diameter | 140mm |
| Working pressure | 150Bar(15Mpa) | Height without valve | 830mm |
| Test pressure | 250Bar(25Mpa) | Valve height/weight | About 100mm/0.5kg |
| Design wall thickness | 4.1mm | Weight without valve | 13.5kg |
| Co2 Gas weight | 6.5kg | Material | 37Mn |
| Color | White,blank,green,yellow and others as customer required. | ||
| Filling medium | Air, oxygen,argon, helium, nitrogen, carbon dioxide(CO2), and mix gas etc. | ||
| Packing | Nude packing /Wooden pallet/Mental pallet/Nylon net/Carton packing. | ||
| Delivery time | 30Days | ||
Our steel gas cylinder always adopt to ISO9809-3andISO9809-1 standard,of course,our cylinder also can meet DOT3AAandEN-ISO9809-3andEN-ISO9809-1 and TPED standard.
We are sure any your want high pressure co2 gas cylinder we can produce it for you,if you are interested in our co2 cylinder, pls feel free send me an inquiry to contact me.

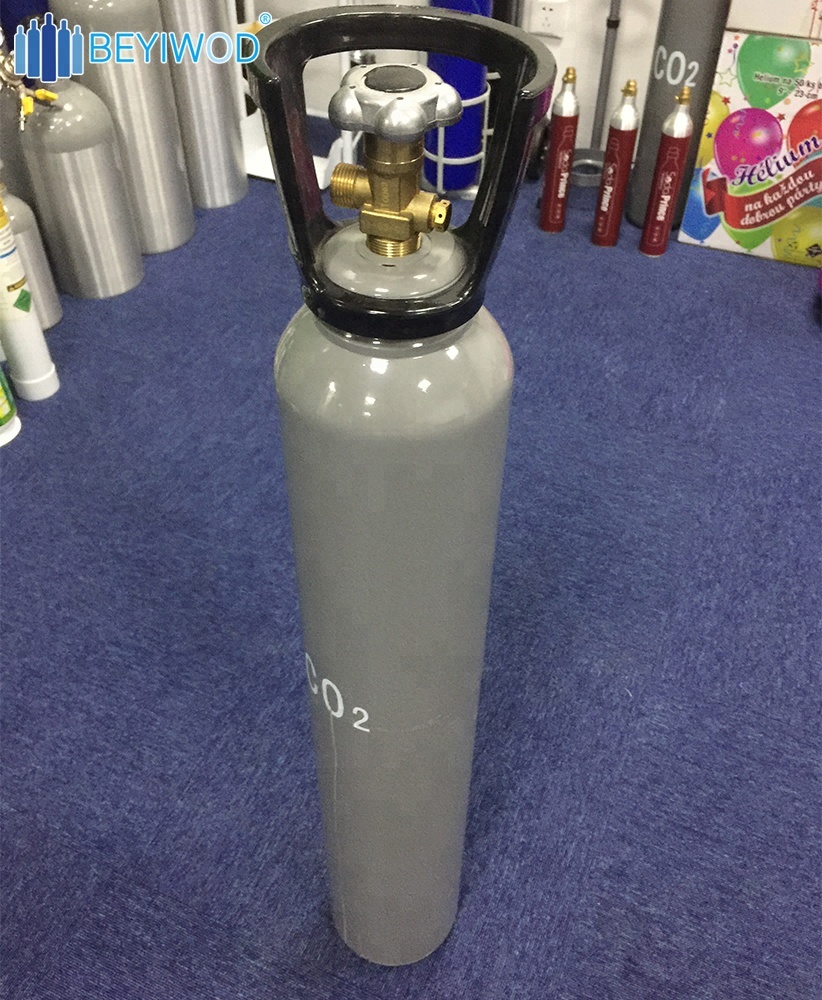

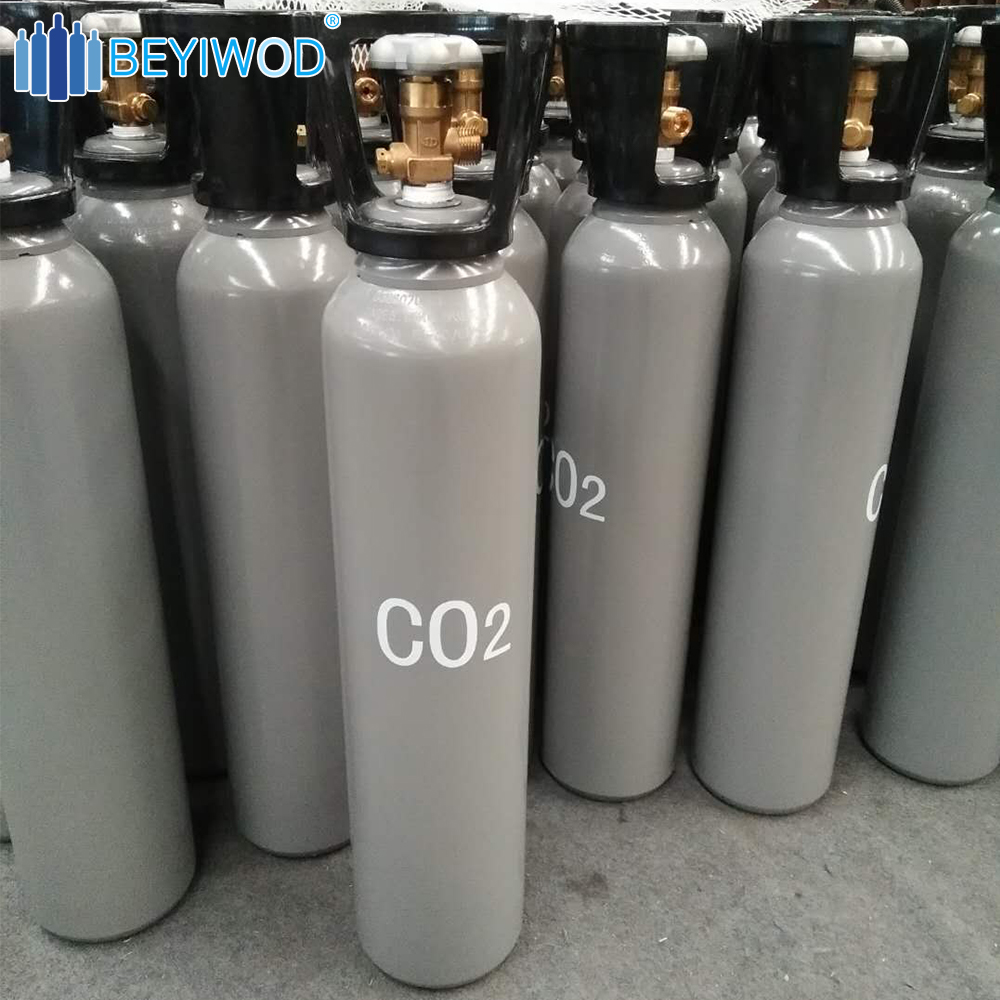

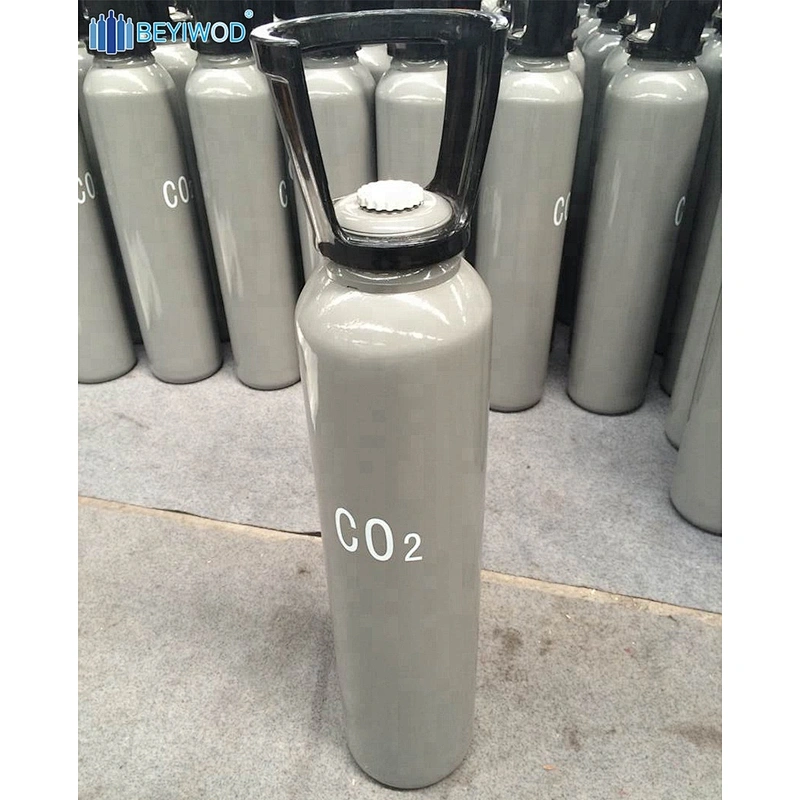

Co2 gas cylinder with handle sale to European market.

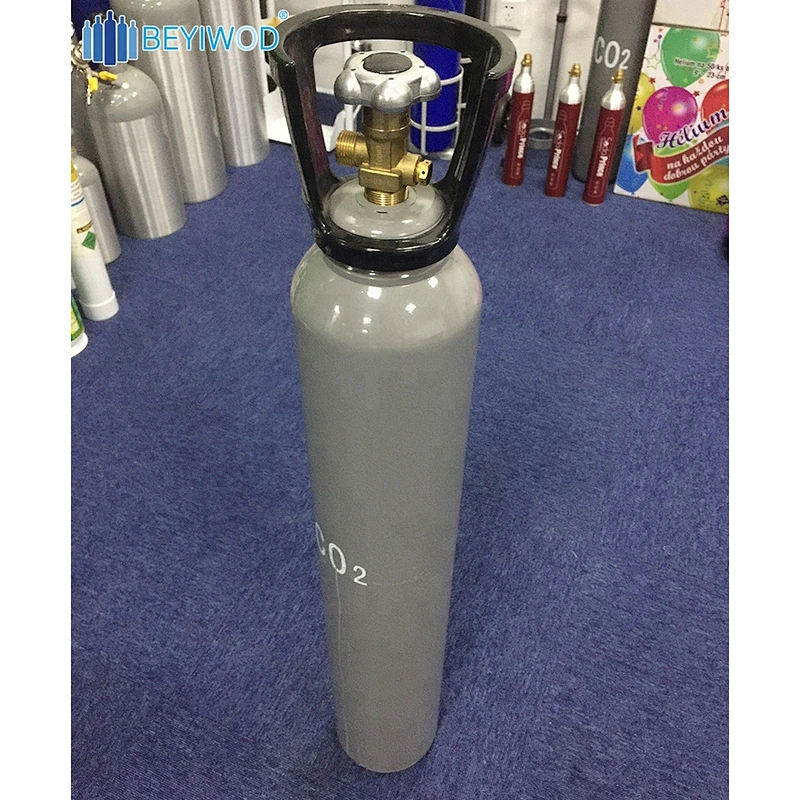

6.7L co2 gas cylinder with valve and handle.

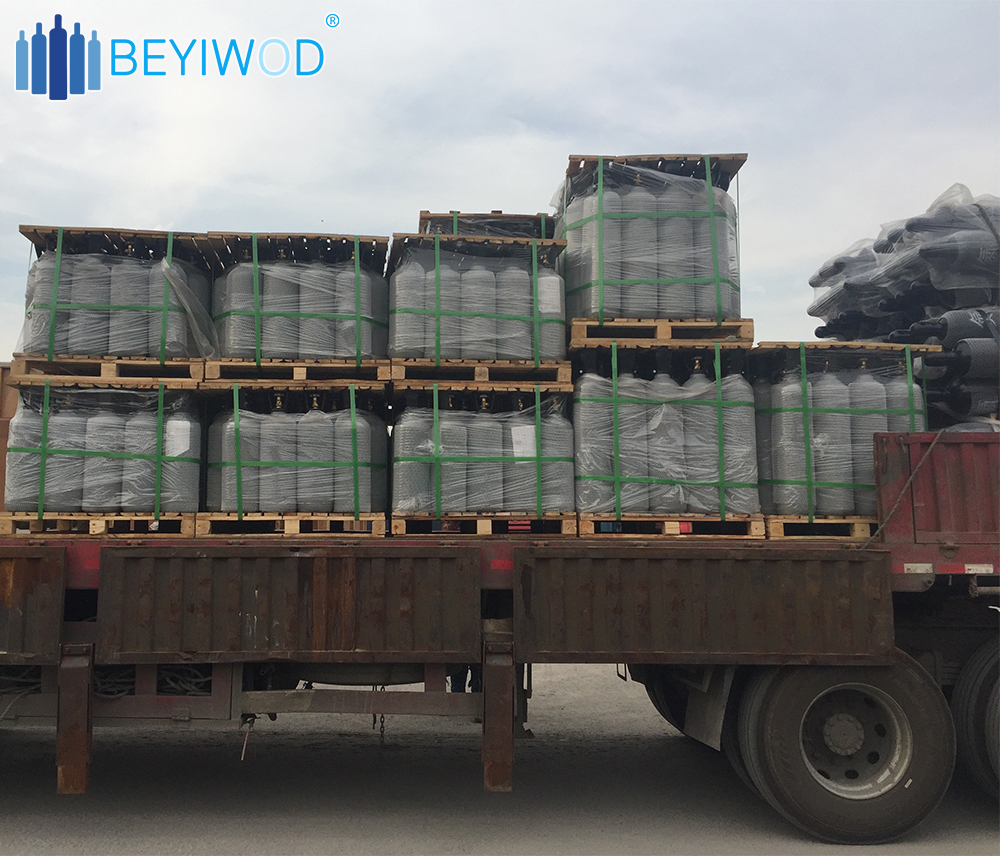

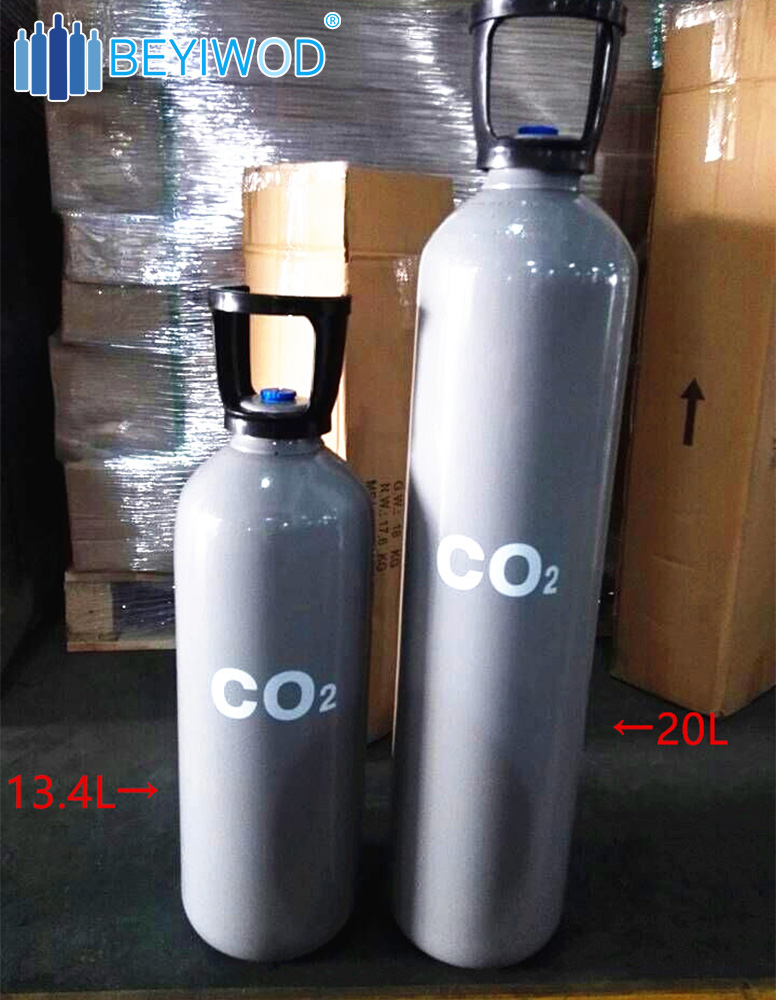

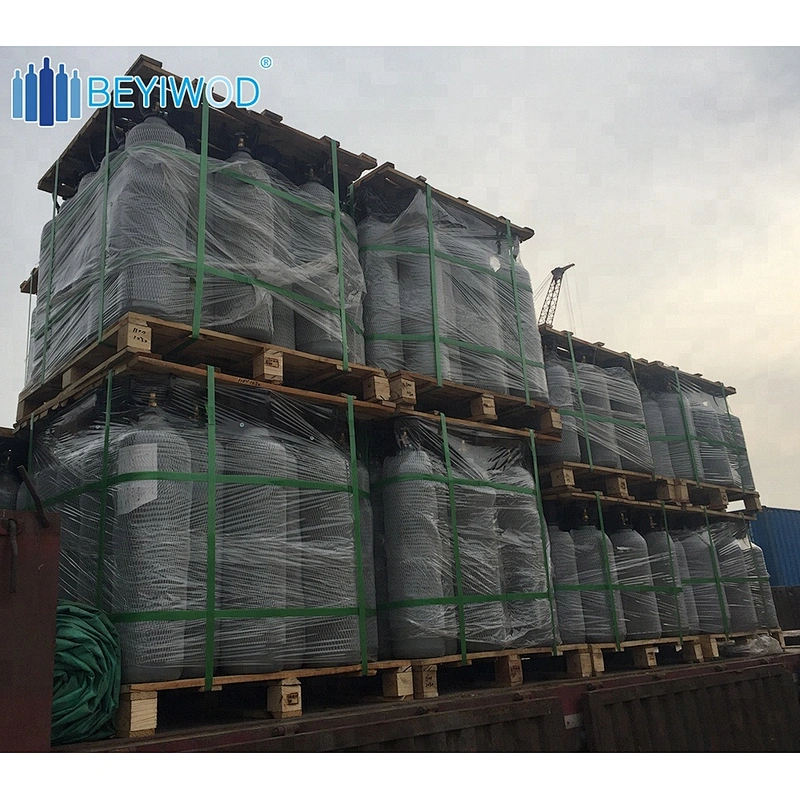

13.4L and 20L PW200bar co2 gas cylinder packed with wooden pallet.

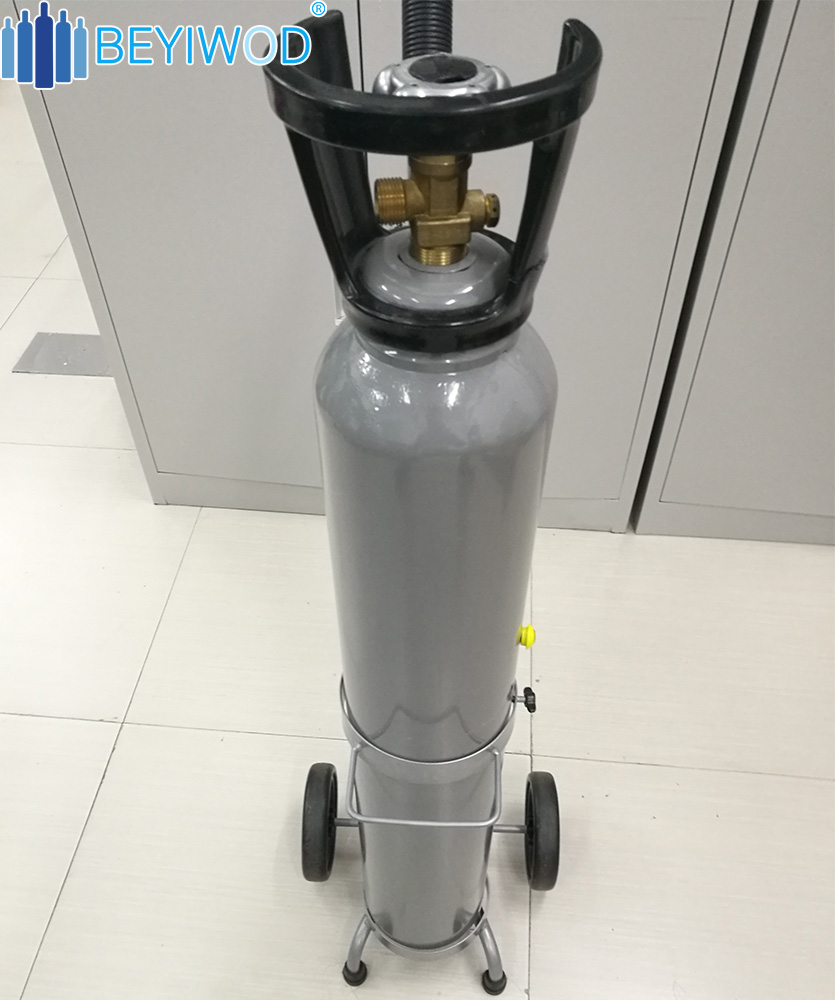

10L PW200bar co2 cylinder with valve and trolley.
ISO9809-3 STANDARD co2 gas cylinder
Serial No. | Type | Nominal working Pressure(bar) | Water test pressure(bar) | Volume(L) | Nominal Outer Dia.(mm) | Length(mm) | Weight (kg) |
1 | BENE108-2-15 | 150 | 250 | 2 | 108 | 315 | 4 |
2 | BENE108-3-15 | 150 | 250 | 3 | 108 | 480 | 5.7 |
3 | BENE140-4-15 | 150 | 250 | 4 | 140 | 365 | 6.6 |
4 | BENE108-5-15 | 150 | 250 | 5 | 108 | 700 | 7.5 |
5 | BENE140-5-15 | 150 | 250 | 5 | 140 | 440 | 7.7 |
6 | BENE140-6.3-15 | 150 | 250 | 6.3 | 140 | 540 | 9.4 |
7 | BENE140-7-15 | 150 | 250 | 7 | 140 | 600 | 10.8 |
8 | BENE140-8-15 | 150 | 250 | 8 | 140 | 685 | 11.0 |
9 | BENE140-9-15 | 150 | 250 | 9 | 140 | 745 | 11.5 |
10 | 150 | 250 | 10 | 140 | 825 | 13.4 | |
11 | BENE159-8-15 | 150 | 250 | 8 | 159 | 545 | 11 |
12 | BENE159-10-15 | 150 | 250 | 10 | 159 | 675 | 13 |
13 | BENE159-13.4-15 | 150 | 250 | 13.4 | 159 | 890 | 21 |
14 | BENE180-20-15 | 150 | 250 | 20 | 180 | 985 | 25 |
15 | 150 | 250 | 20 | 219 | 730 | 27 | |
16 | BENE219-40-15 | 150 | 250 | 40 | 219 | 1310 | 48 |
17 | BENE232-50-15 | 150 | 250 | 50 | 232 | 1480 | 60 |
18 | BENE267-68-15 | 150 | 250 | 68 | 267 | 1500 | 74 |
19 | BENE279-80-15 | 150 | 250 | 80 | 279 | 1735 | 91 |
