- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:ISO7866/DOT3AL
- Material:Aluminium, AA6061 of medical oxygen cylinder
- Brand Name:BEYIWOD
- Use:Oxygen

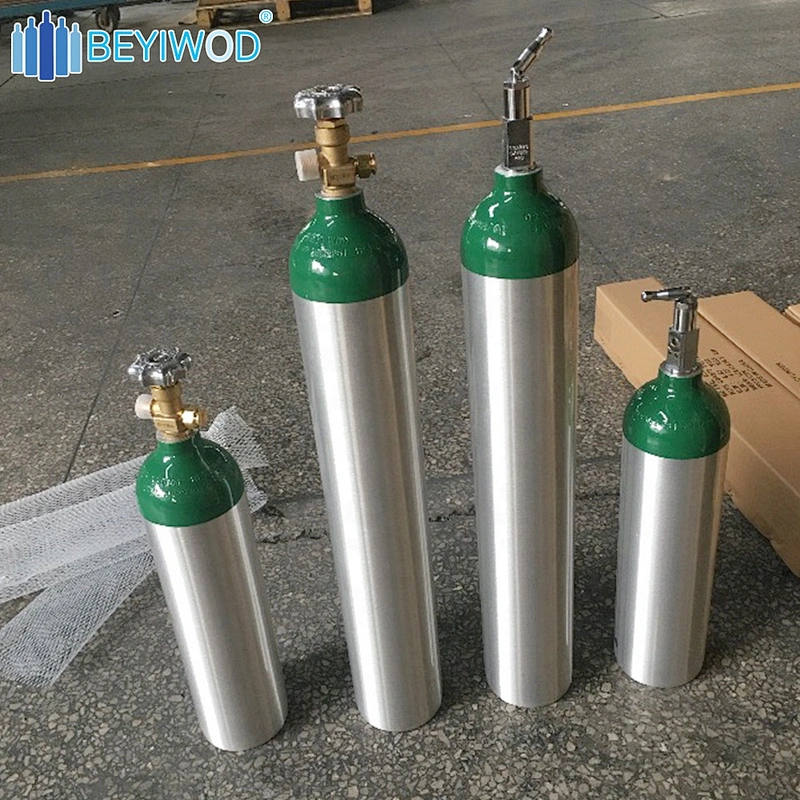

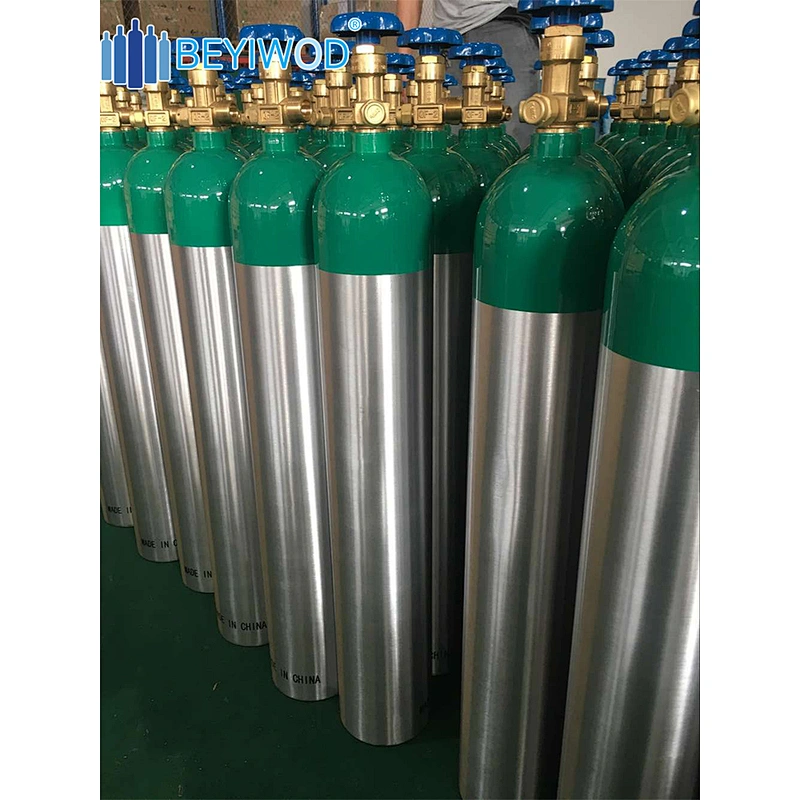

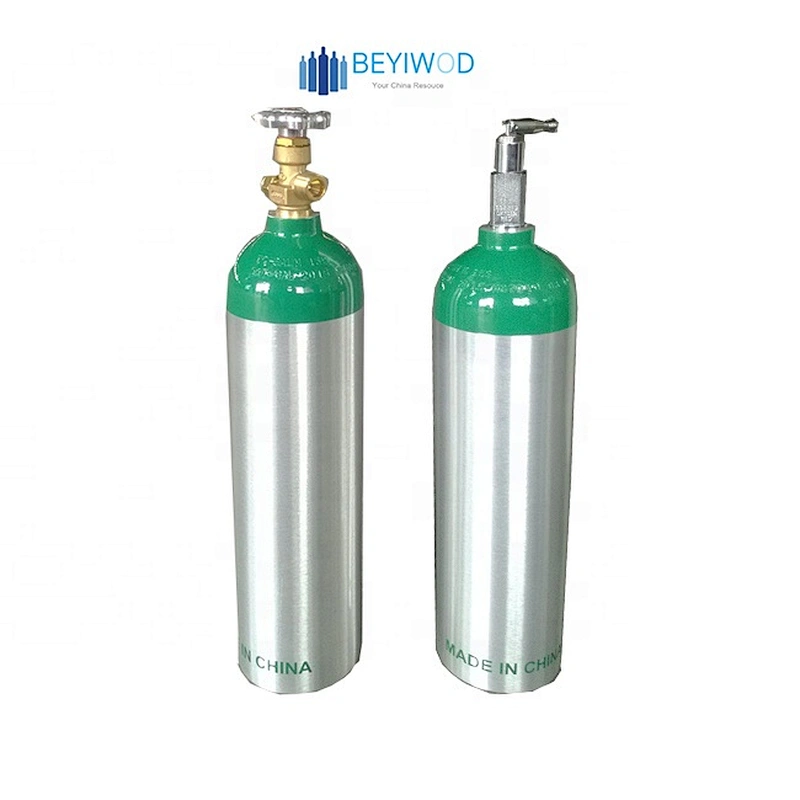

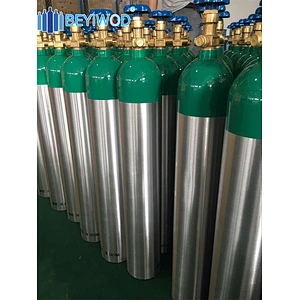

- Product item:MD DOT cylinder
- Outer Dia.:51mm~204mm
- Water Capacity Volume:0.5L~20L of 2.75L oxygen cylinder
- Working Pressure:124bar,139bar,150bar,153bar,166bar,200bar,207bar
- Test Pressure:207bar,232bar,250bar,255bar,250bar,,300bar,350bar
- Length without valve:153mm~925mm 2.75L oxygen cylinder
- Weight without valve:0.21kg~21.8kg 2.75L oxygen cylinder
- Color:as per your requested medical oxygen cylinder
- Certificate:ISO7866,DOT3AL,CE TPED

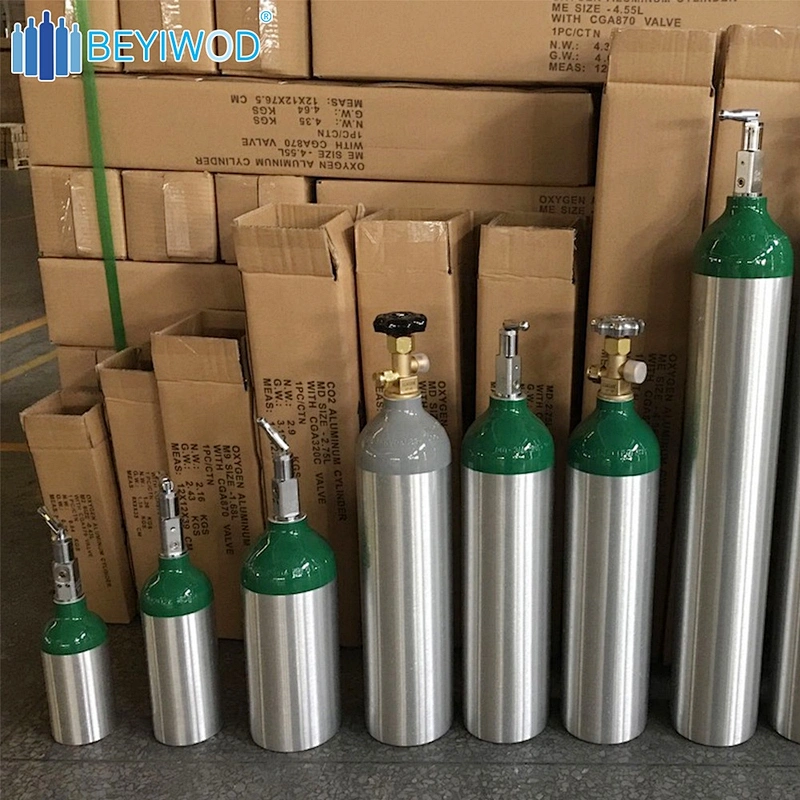

Main product for 3L 5L 7L 10L 20L 40L Empty Aluminum Oxygen Cylinder price for Medical Use

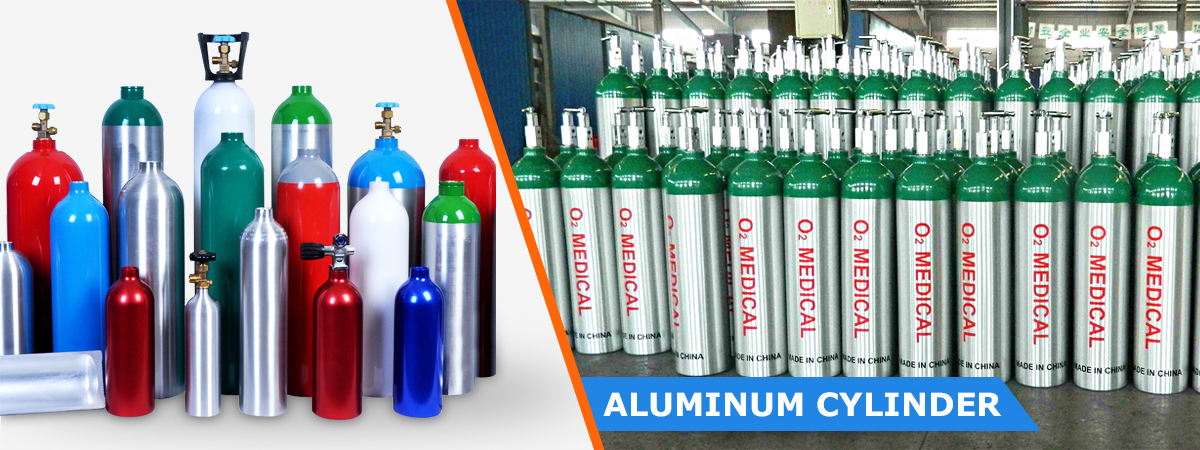

HOT SALE PRODUCTS: CUSTOM SIZE MEDICAL OXYGEN GASD N2O O2 ALUMINUM GAS CYLINDER/TANKS/BOTTLE WITH CGA540 CGA870 VALVE
350,800PCS PER YEAR TO ABROAD!
U.S.A.Standard DOT3AL

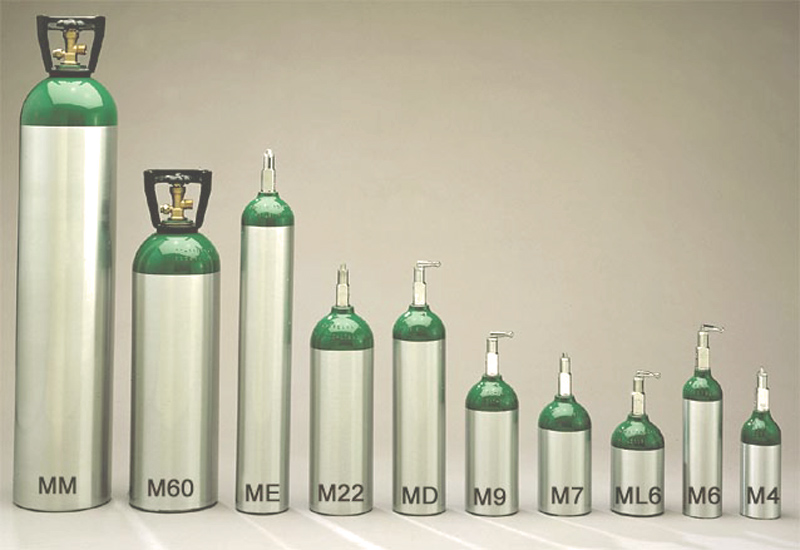

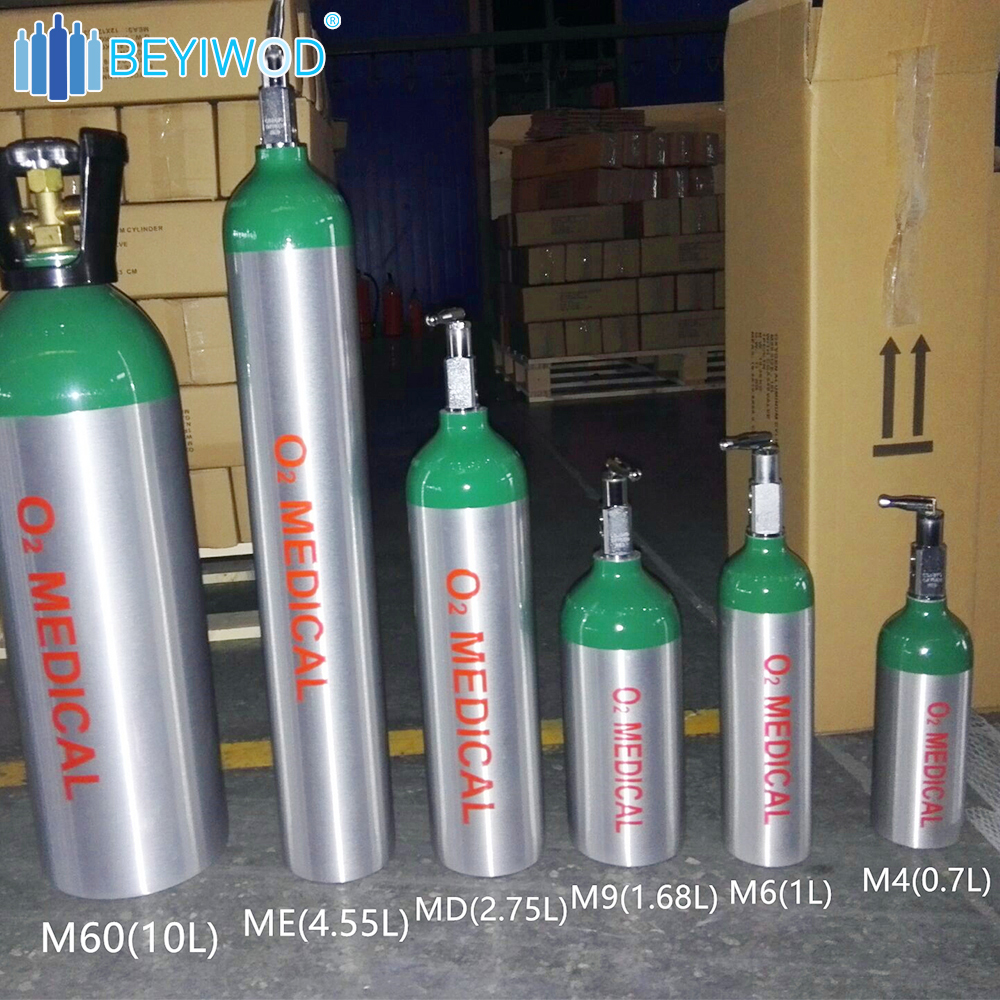

Size | Diameter mm | Length mm | Volume L/water capacity | Weight kg/lbs | Working pressure bar/psi |
M2 | 51 | 238 | 0.30 | 0.37 | 120/1800 |
9oz | 54 | 245 | 0.38 | 0.38 | 124/1800 |
12oz | 64 | 245 | 0.51 | 0.49 | 124/1800 |
M4 | 81 | 205 | 0.68 | 0.72 | 124/1800 |
20oz | 81 | 245 | 0.85 | 0.80 | 124/1800 |
47ci | 90 | 210 | 0.70 | 1.22 | 210/3000 |
M6 | 81 | 295 | 1.00 | 1.14 | 155/2216 |
ML6 | 111 | 195 | 1.08 | 1.34 | 139/2015 |
M9/2.5lbs(co2) | 111 | 276 | 1.68 | 1.75 | 139/2015 |
| MD | 111 | 423 | 2.75 | 2.45 | 139/2015 |
| M22 | 133 | 420 | 3.90 | 3.3 | 139/2015 |
| ME | 111 | 650 | 4.55 | 3.6 | 139/2015 |
5lbs(co2) | 133 | 369 | 3.34 | 3 | 124/1800 |
10lbs(co2) | 175 | 430 | 6.70 | 6 | 124/1800 |
| M60 | 184 | 581 | 10.00 | 9.8 | 153/2216 |
| 20lbs(co2) | 203 | 600 | 13.40 | 10.8 | 124/1800 |
| MM | 203 | 907 | 21 | 19 | 153/2216 |
