- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:BENE-ME
- Material:Aluminium, AA6061
- Brand Name:BENE/BEYIWOD
- Use:medical hospital used
- Outside Diameter:111mm
- Volume:4.55l
- Working Pressure:139bar
- Test Pressure:232bar/3360psi
- Length without valve:650mm
- Weight without valve:3.6
- Valve:Client Quired

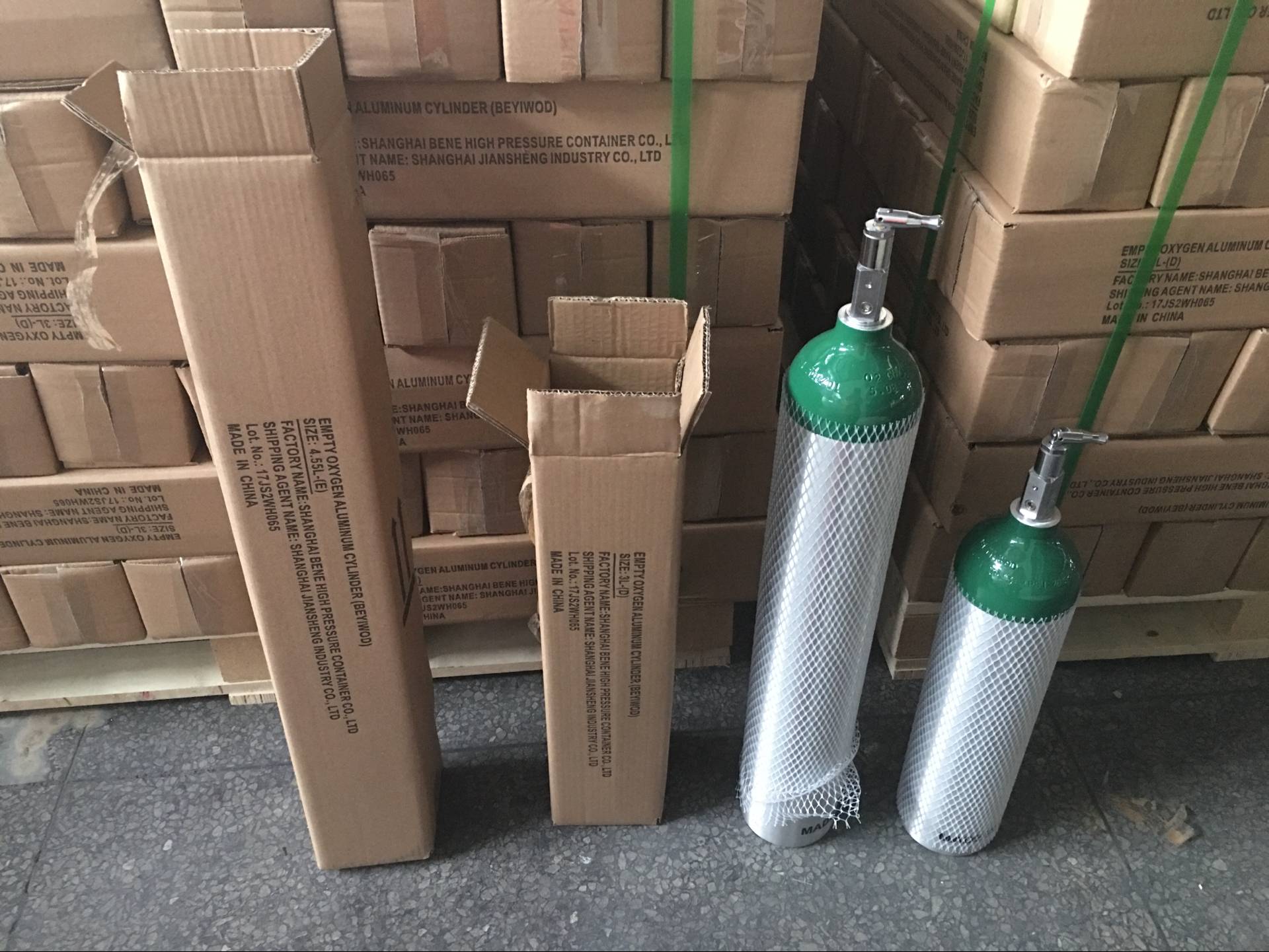

- Package:Carton
- Standard:DOT 3AL
Product Description
BENE/BEYIWOD producing gas cylinders craft
Raw material inspection---- cutting pipes----- bottom spinning---- top spinning---- heat treatment Q+T----- physical and chemical test----- machining----- stamping----- hydraulic test----- washing----- drying----- inside blasting----- outside blasting-----hardness inspection----- non destructive examination----- outside blasting----- painting----- installing valves-----air leakage test----- unloading valves----- final inspection----- packaging and storage.
Feature
*Brand: BENE/BEYIWOD
*Material: AA6061
*Valve:CGA870
*Useage: hospital
*Outside diameter: 111mm
*Weight without valve: 3.6KGS
*Standard: DOT3AL

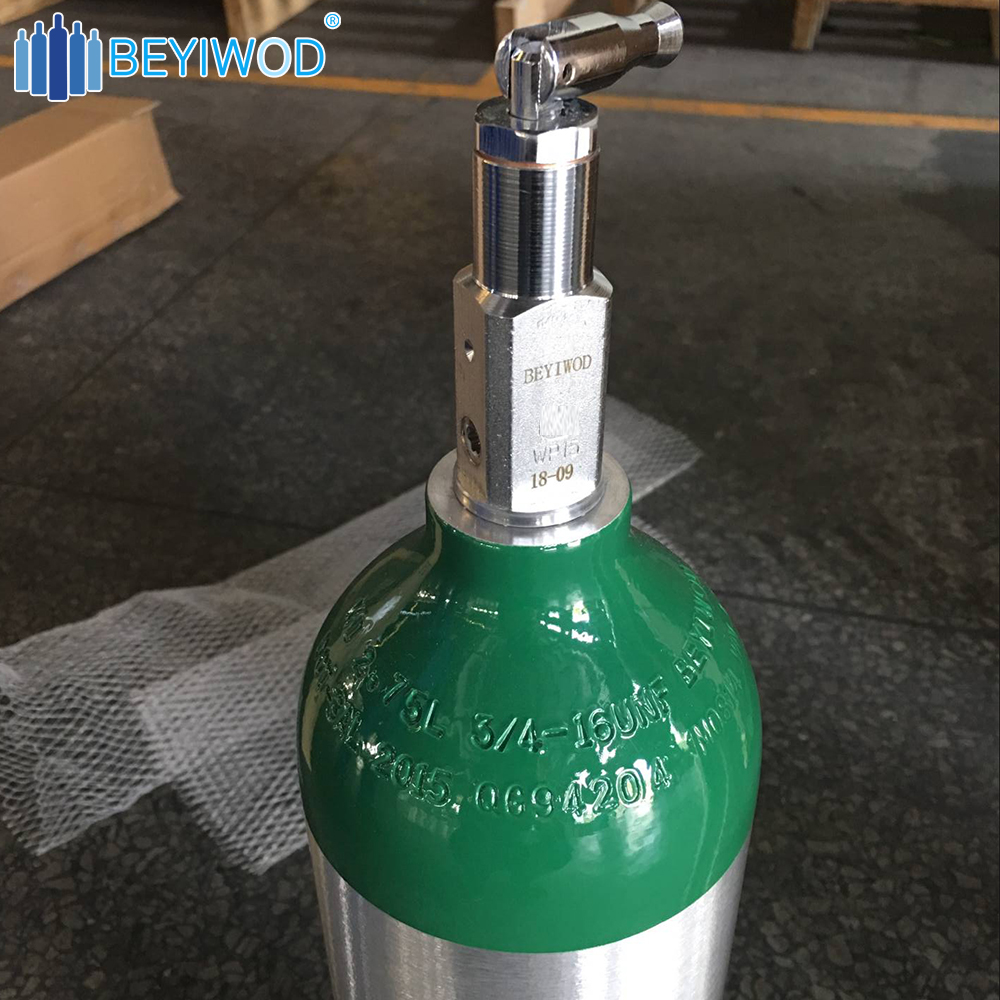

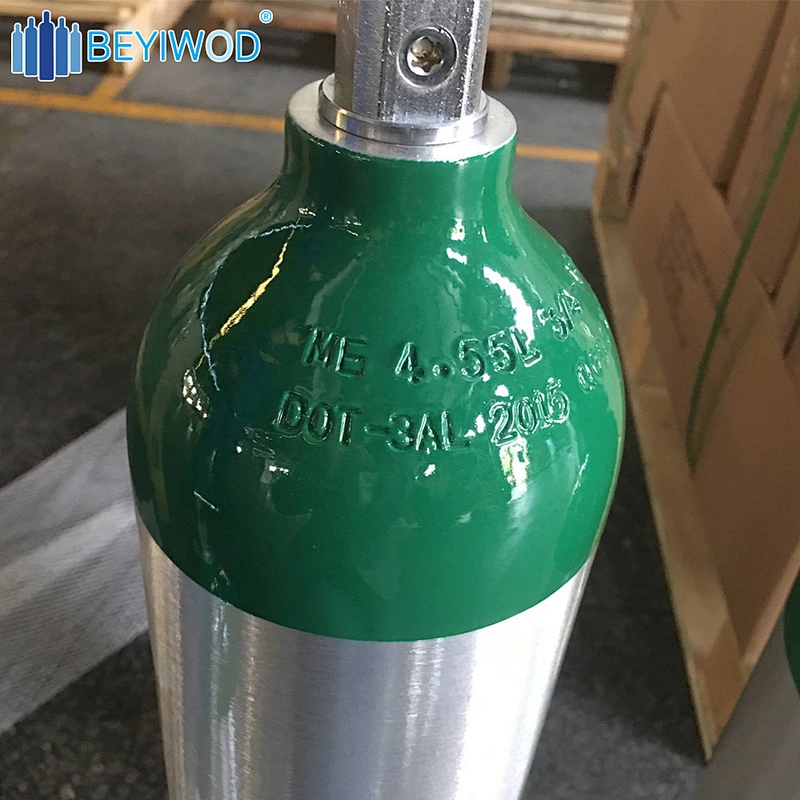

medical oxygen cylinder stamping

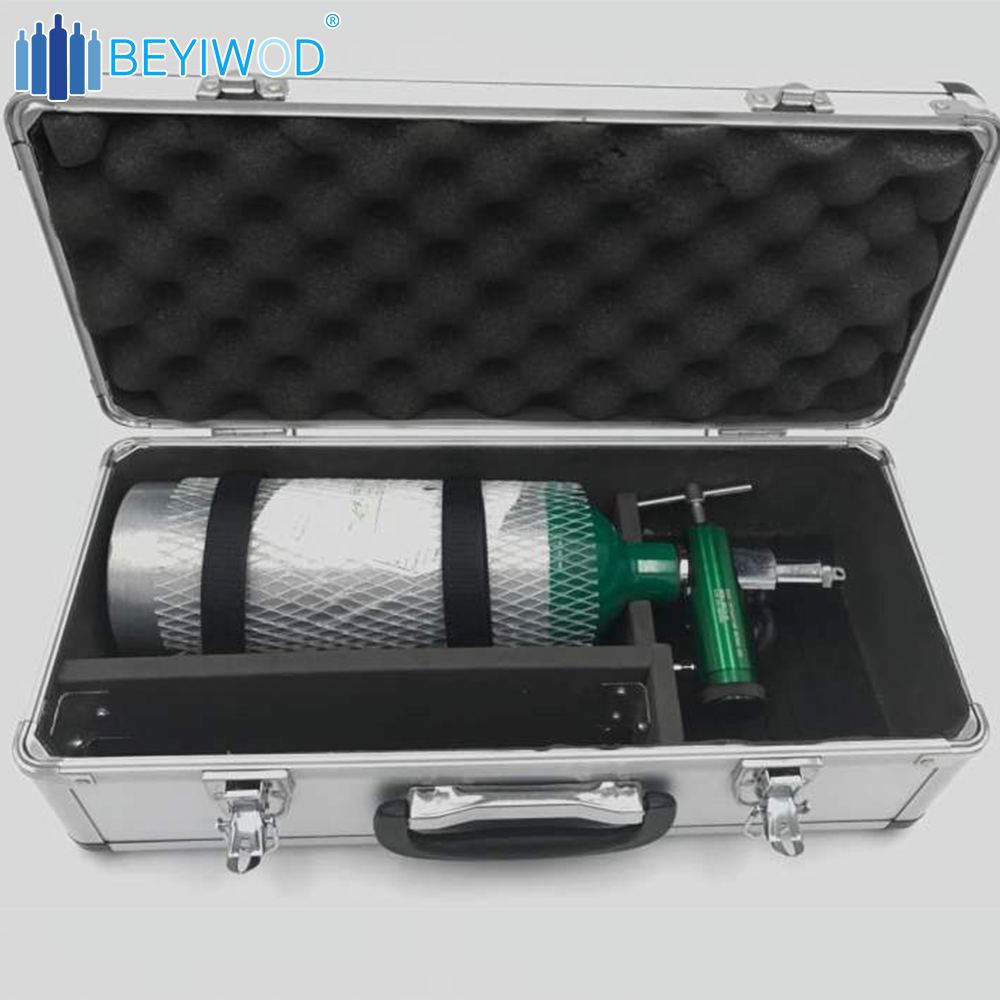

Cylider bag

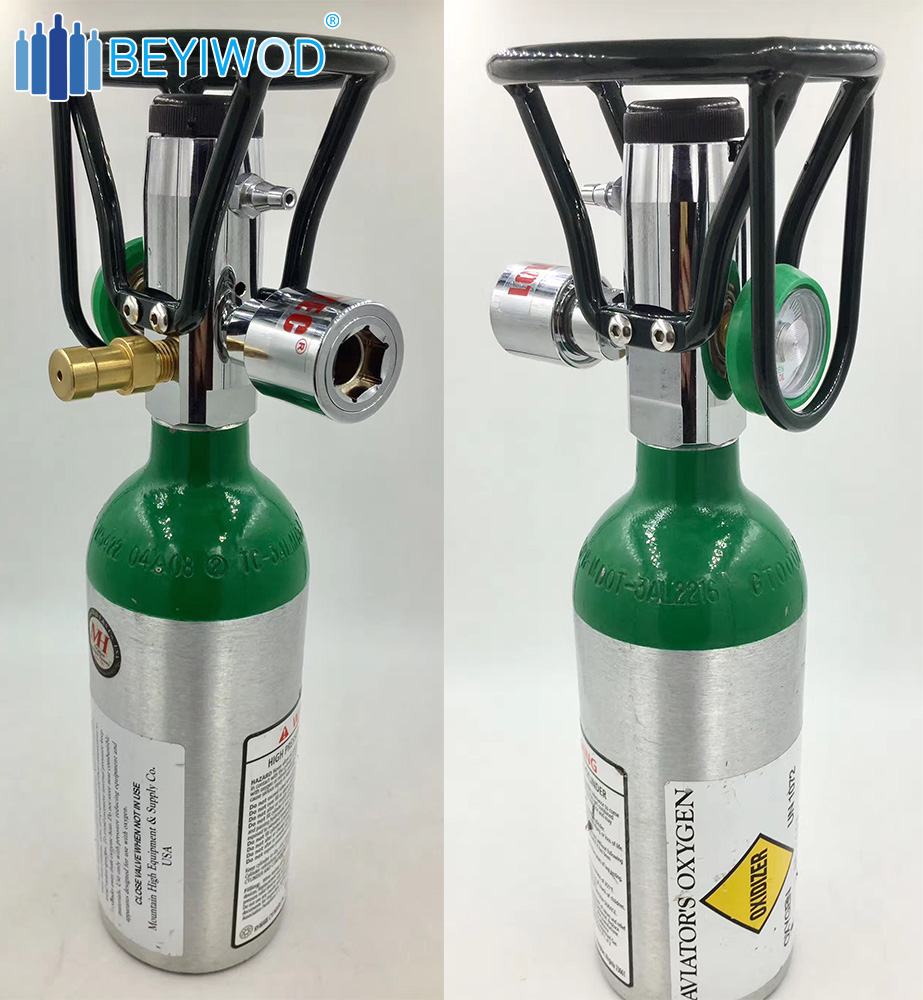

Medical oxygen regulator, trolly, etc
Size Information

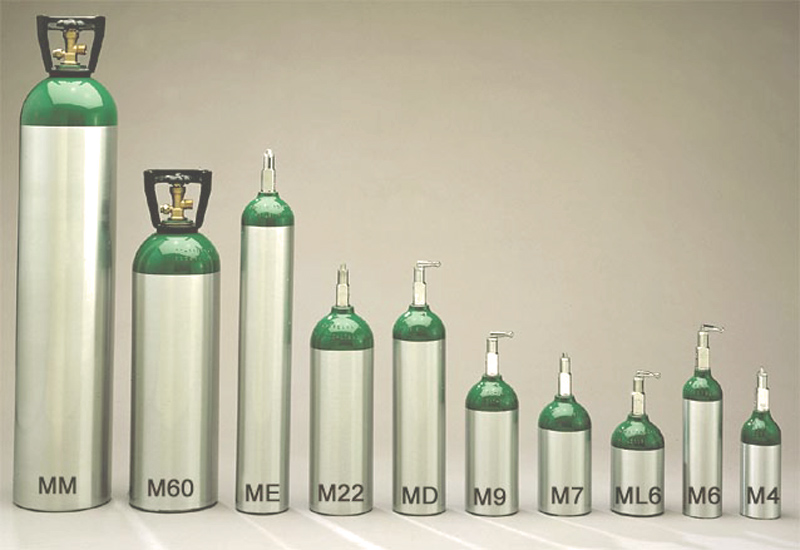

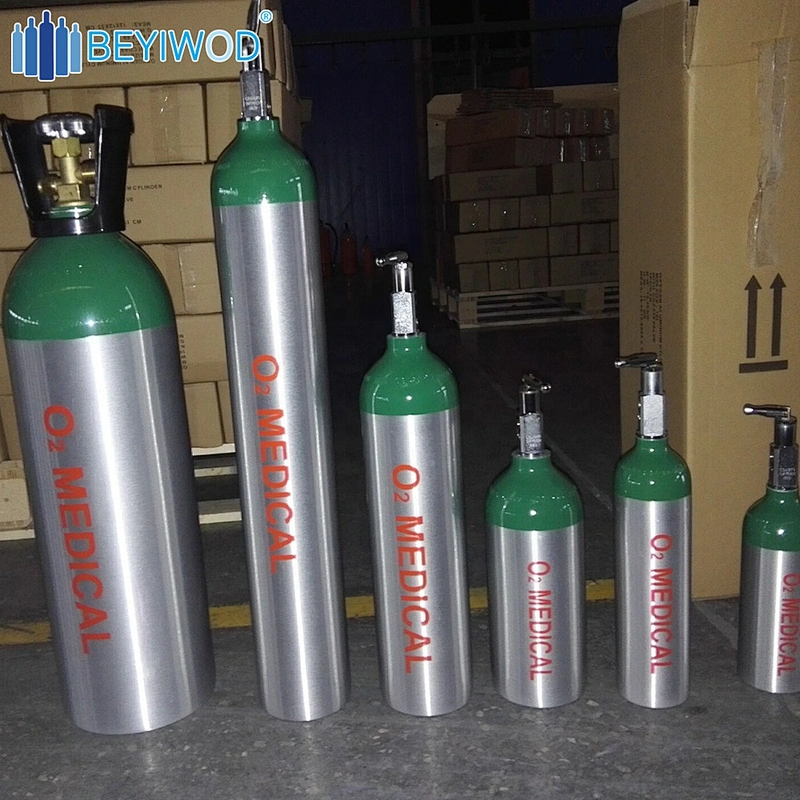

medical oxygen gas cylidner M series form
M Type | Outside Diameter | Volume | WP | TP | Length Without Valve |
M4 | 91mm | 0.787l | 207bar/3000psi | 350bar/5000psi | 230mm |
M6 | 81mm | 1l | 153bar/2216psi | 255bar/3695psi | 295mm |
ML6 | 111mm | 1.08l | 139bar/2015psi | 232bar/3360psi | 195mm |
M9/MC | 1.68l | 280mm | |||
MD | 111mm | 2.75l | 423mm | ||
M22 | 133mm | 3.9l | 420mm | ||
ME | 111mm | 4.55l | 650mm | ||
M60 | 184mm | 10l | 153bar/2216psi | 255bar/3695psi | 581mm |
M90 | 184mm | 15.2l | 830mm | ||
MM/M122 | 203mm | 21l | 153bar/2216psi | 907mm |
