- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:2L/3L/5L/7L/10L
- Material:Steel, seamless steel nitrous oxide cylinder
- Brand Name:BEYIWOD/OEM
- Use:Oxygen
- Place of origin:Shanghai,China(mainland)
- Water Capacity:5L 7L 10L nitrous oxide cylinder
- Working Pressure:150bar / 200bar nitrous oxide cylinder
- Test Pressure:250bar / 300bar nitrous oxide cylinder
- Outside Diameter:140MM/159MM nitrous oxide cylinder
- Wall thickness:4.1MM/4.7MM nitrous oxide cylinder
- Certification:ISO9809-1/ISO9809-3 nitrous oxide cylinder
- Weight without valve:7.7KG/10KG/13.5KG nitrous oxide cylinder
- Height without valve:440MM/600MM/840MM nitrous oxide cylinder
The industrial /nitrous oxide cylinder are all made by high quality seamless steel tube,consistent height, smoothly painting, and excellent properties, which is widely used for steel cutting, welding, electronic, medical and other fields,and are supposed to be used repeatedly for keeping argon which is mainly used for steel cutting, welding, electronic, medical and so on.Our steel cylinder size from 1.8L to 80L,all your need cylinder we all can produce.
| Type | portable N2O nitrous oxide cylinder | ||
| Water capacity | 5L | Outer diameter | 108mm |
| Working pressure | 150Bar(15Mpa) | Height without valve | 692mm |
| Test pressure | 250Bar(25Mpa) | Valve height/weight | About 100mm/0.5kg |
| Design wall thickness | 3.2mm | Weight without valve | 7.5kg |
| Gas volume | 0.75m³ | Material | 37Mn |
| Color | White,blank,green,yellow and others as customer required. | ||
| Filling medium | N2O(nitrous oxide),Air, oxygen,argon, helium, nitrogen, carbon dioxide(CO2), and mix gas etc. | ||
| Packing | Nude packing /Wooden pallet/Mental pallet/Nylon net/Carton packing. | ||
| Delivery time | 30Days | ||
Our steel gas cylinder always adopt to ISO9809-3 and ISO9809-1 standard,of course,our cylinder also can meet DOT3AA and EN-ISO9809-3 and EN-ISO9809-1 and TPED standard.

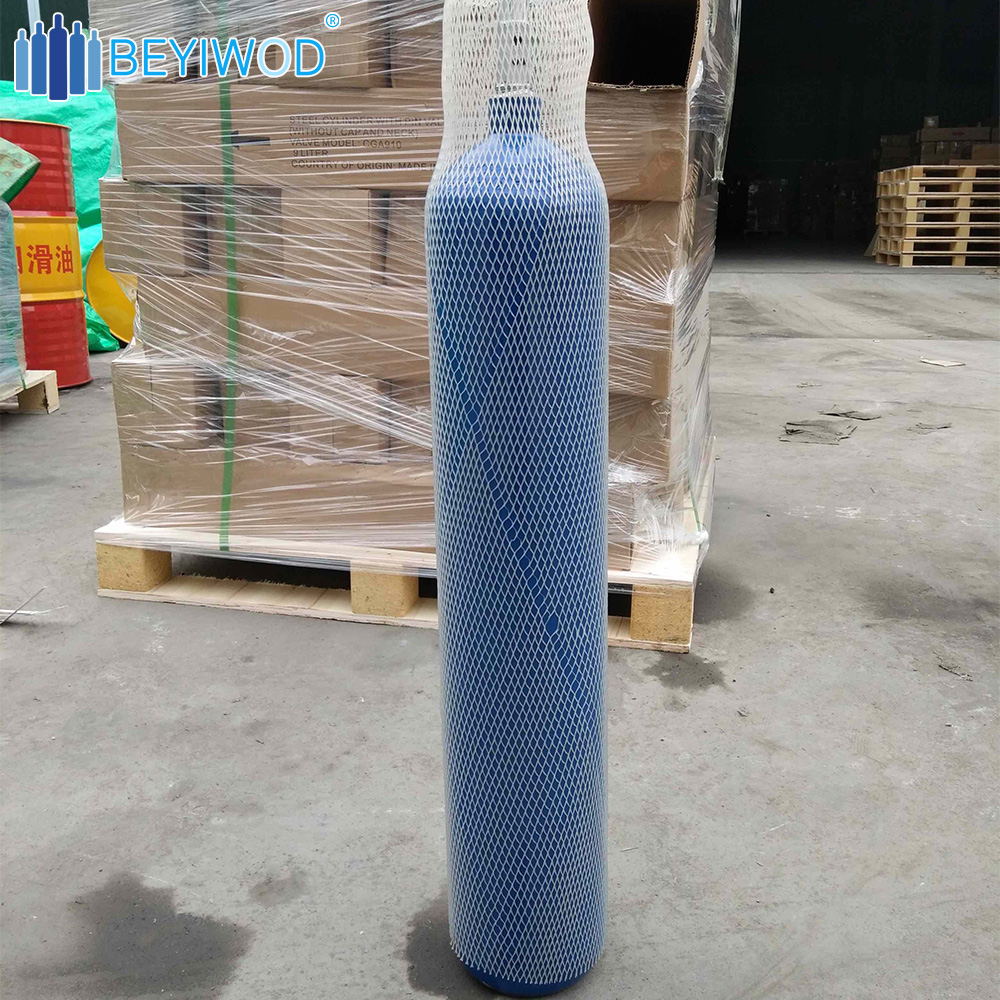

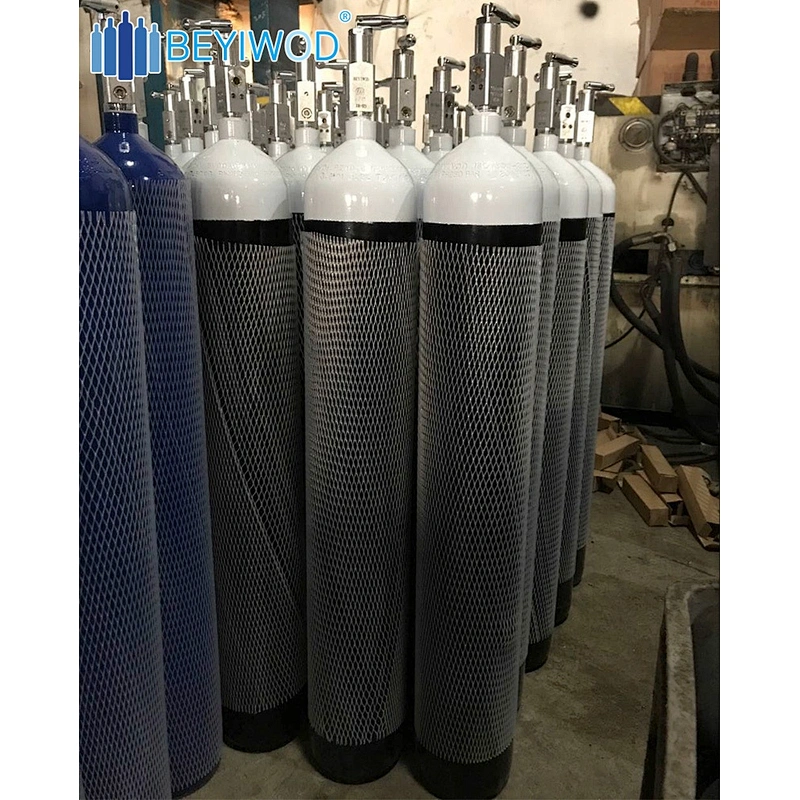

9L steel 150bar pressure nitrous oxide cylinder packed with nylon net.

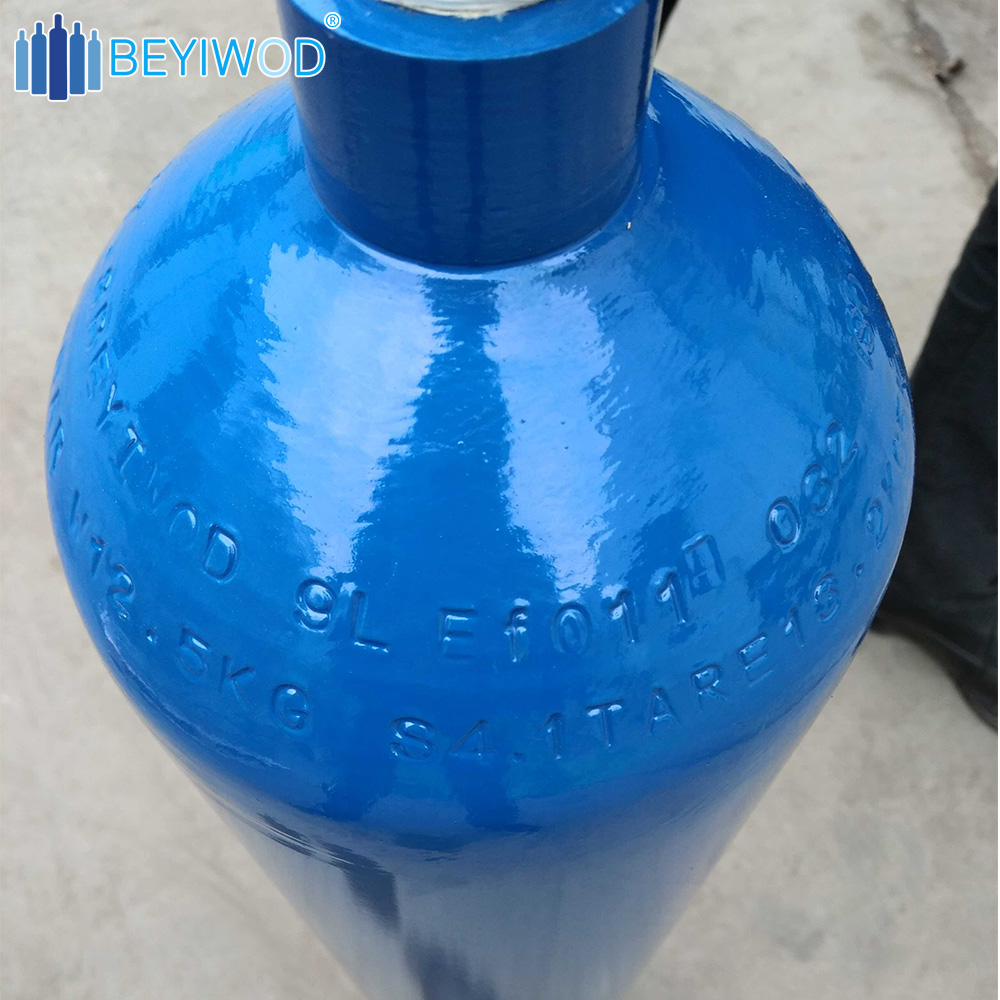

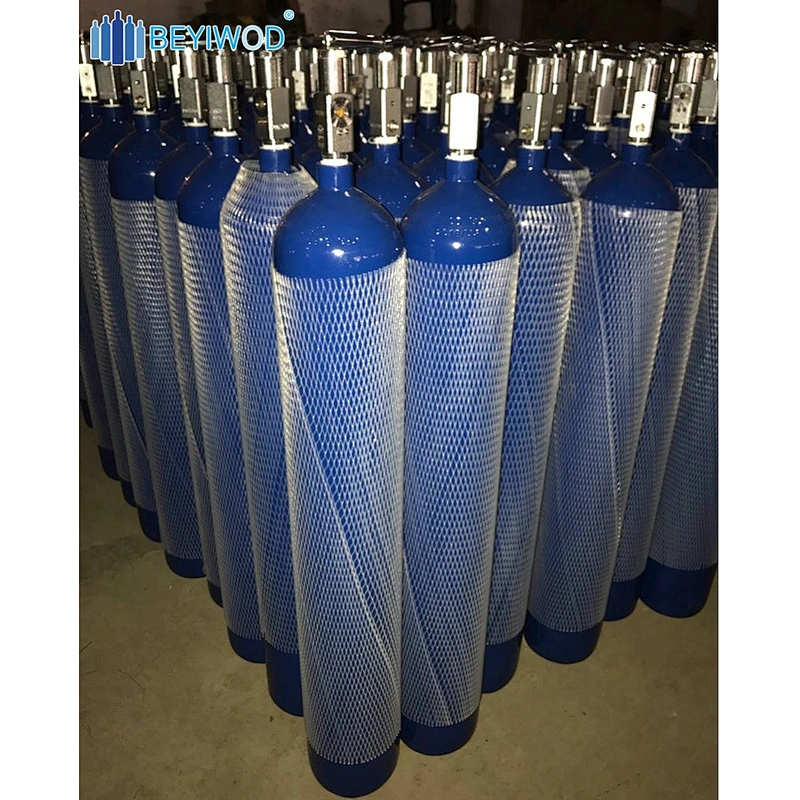

9L steel N2O nitrous oxide cylinder with blue color.

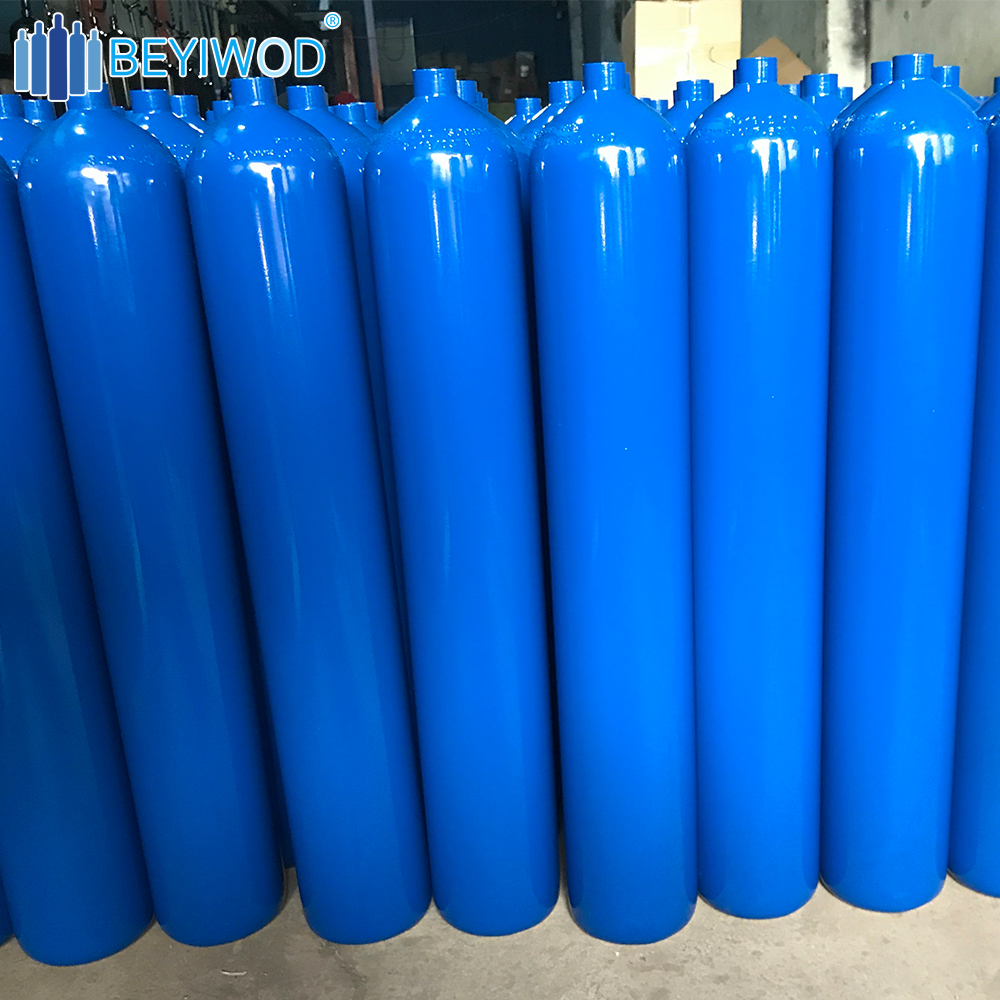

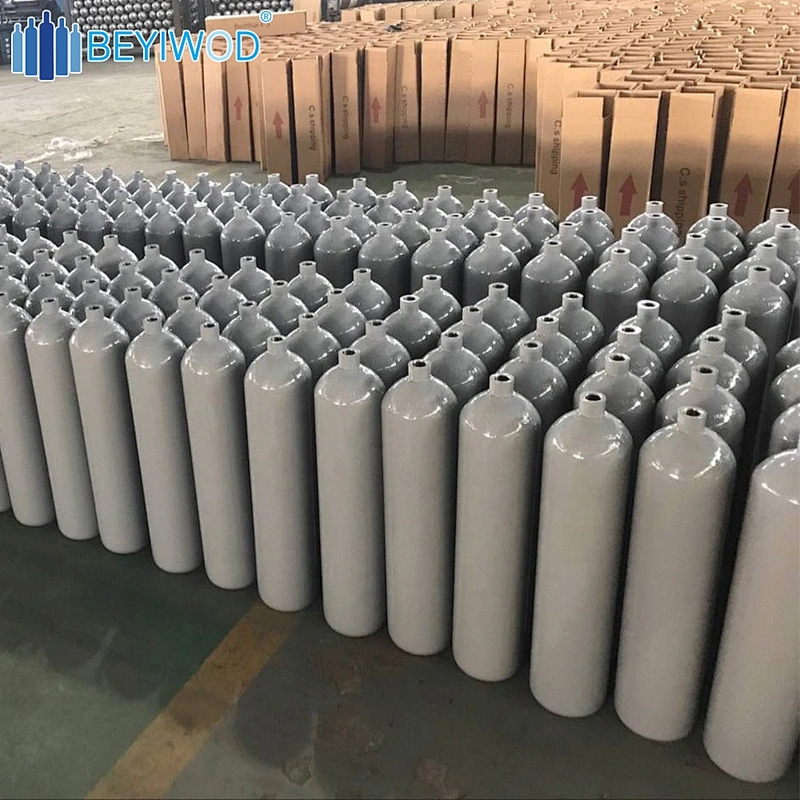

Empty Medical nitrous oxide cylinder .

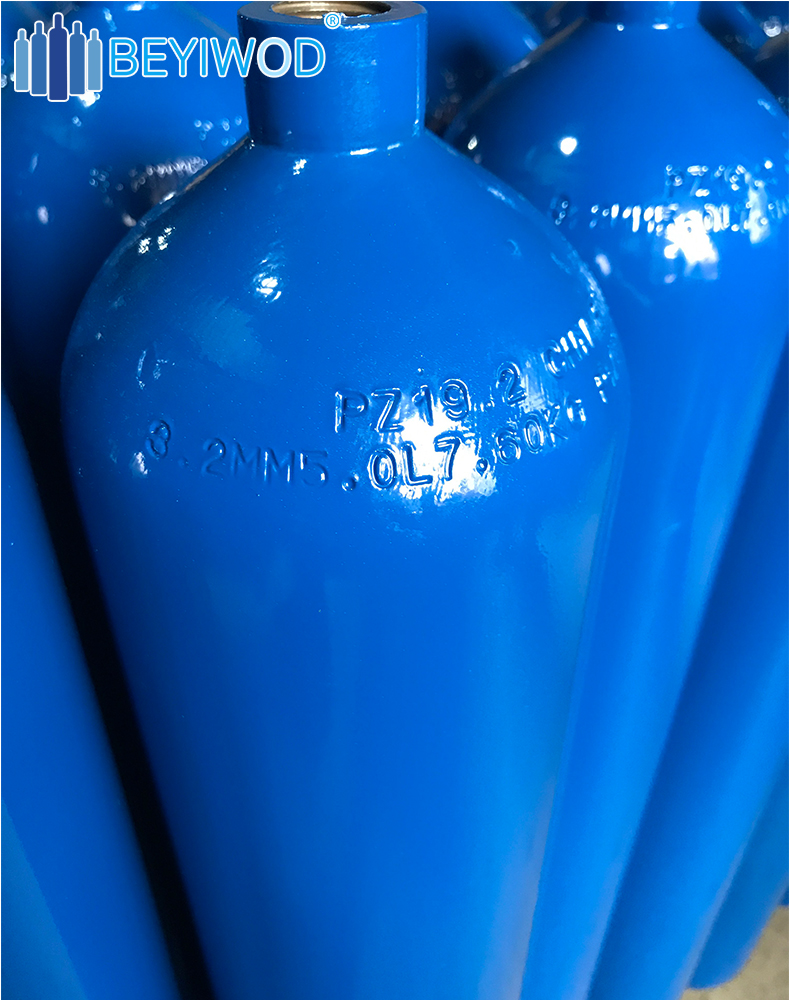

5L 150bar medical nitrous oxide cylinder .

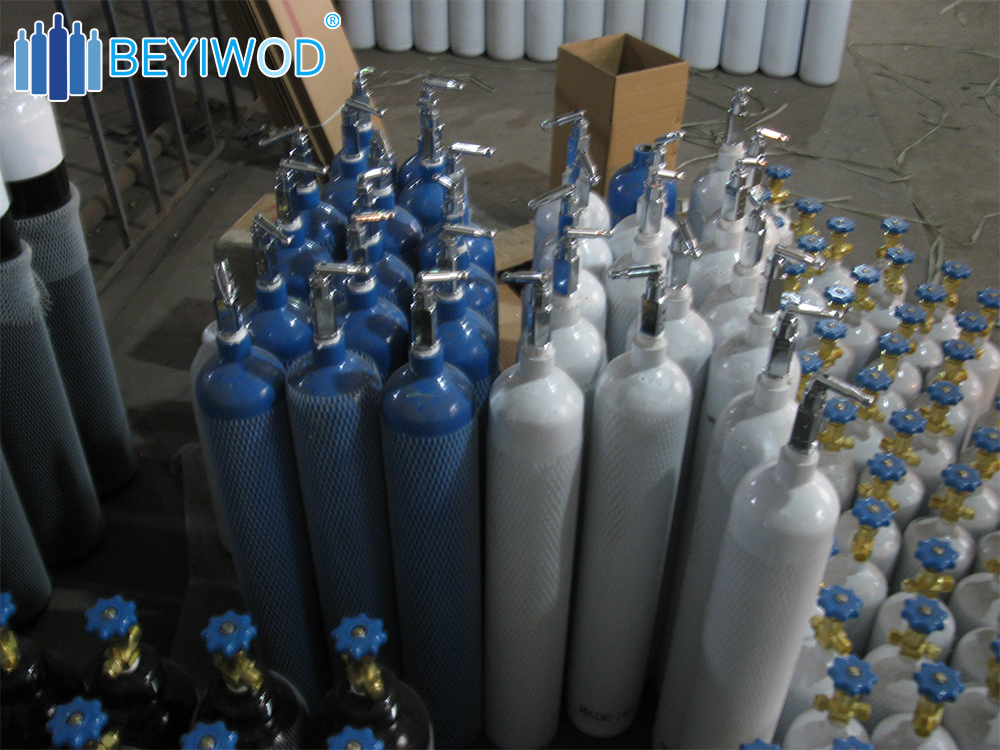

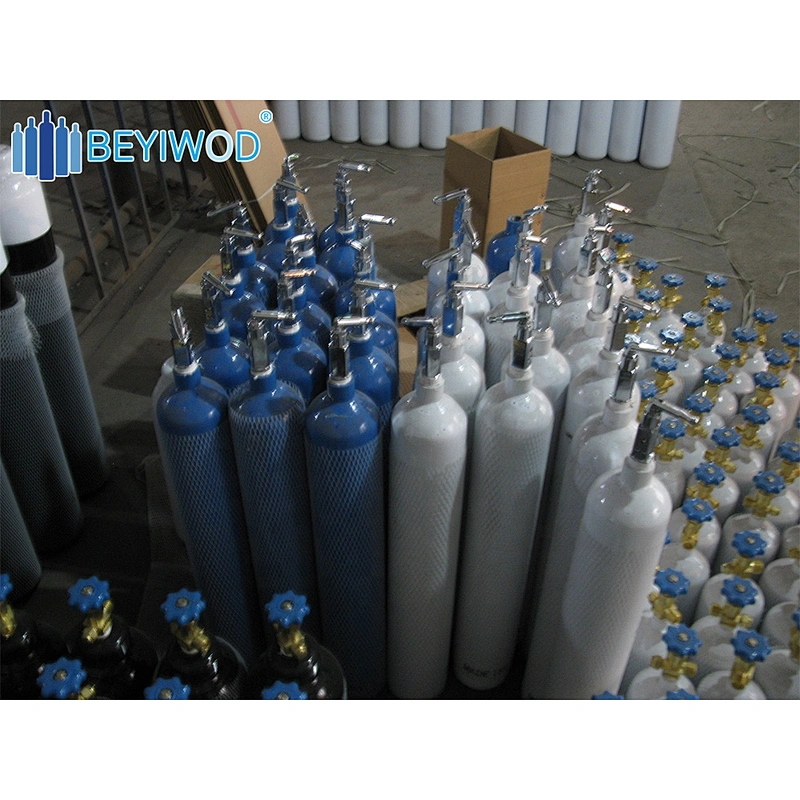

N2O cylinder with CGA910 nitrous oxide valve.

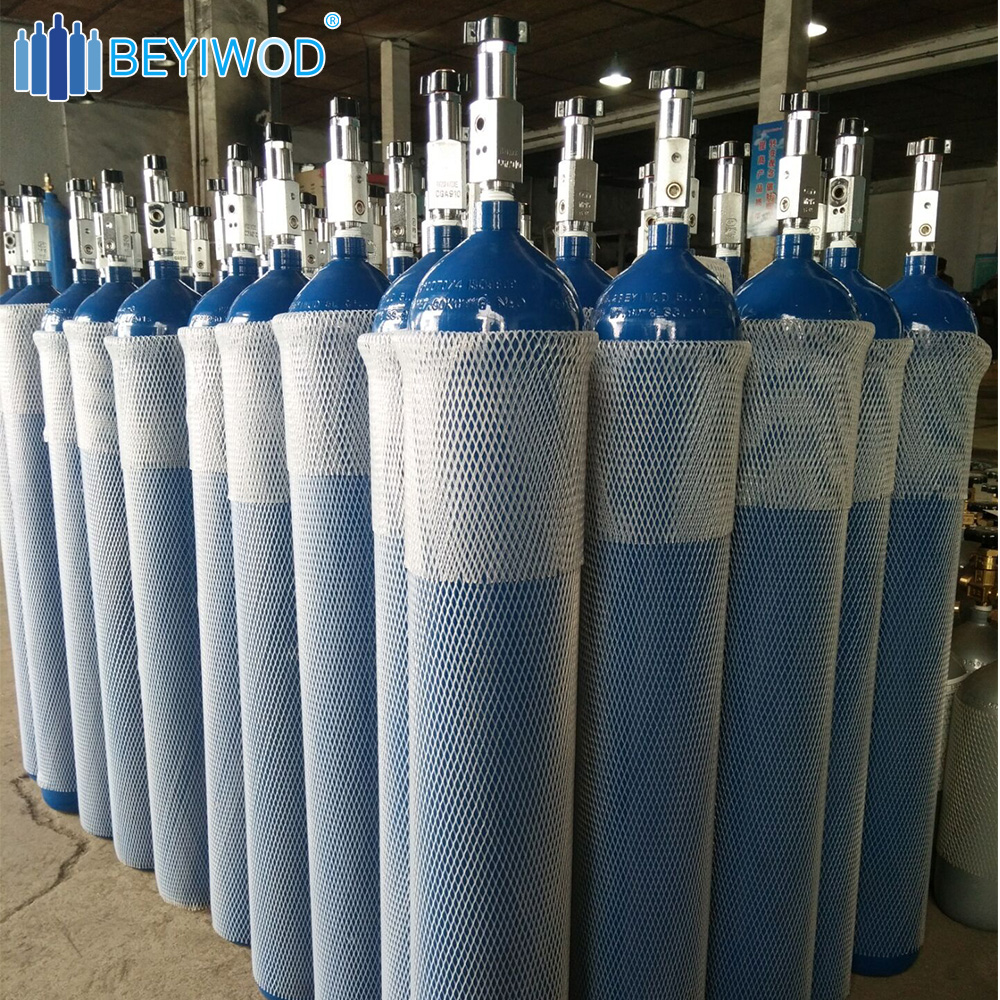

nitrous oxide cylinder with CGA910 N2O valve.
ISO9809-3 standard nitrous oxide cylinder .
Serial No. | Type | Nominal working Pressure(bar) | Water test pressure(bar) | Volume(L) | Nominal Outer Dia.(mm) | Length(mm) | Weight (kg) |
1 | BENE108-2-15 | 150 | 250 | 2 | 108 | 315 | 4 |
2 | BENE108-3-15 | 150 | 250 | 3 | 108 | 480 | 5.7 |
3 | BENE140-4-15 | 150 | 250 | 4 | 140 | 365 | 6.6 |
4 | BENE108-5-15 | 150 | 250 | 5 | 108 | 700 | 7.5 |
5 | BENE140-5-15 | 150 | 250 | 5 | 140 | 440 | 7.7 |
6 | BENE140-6.3-15 | 150 | 250 | 6.3 | 140 | 540 | 9.4 |
7 | BENE140-7-15 | 150 | 250 | 7 | 140 | 600 | 10.8 |
8 | BENE140-8-15 | 150 | 250 | 8 | 140 | 685 | 11.0 |
9 | BENE140-9-15 | 150 | 250 | 9 | 140 | 745 | 11.5 |
10 | 150 | 250 | 10 | 140 | 825 | 13.4 | |
11 | BENE159-8-15 | 150 | 250 | 8 | 159 | 545 | 11 |
12 | BENE159-10-15 | 150 | 250 | 10 | 159 | 675 | 13 |
13 | BENE159-13.4-15 | 150 | 250 | 13.4 | 159 | 890 | 21 |
14 | BENE180-20-15 | 150 | 250 | 20 | 180 | 985 | 25 |
15 | 150 | 250 | 20 | 219 | 730 | 27 | |
16 | BENE219-40-15 | 150 | 250 | 40 | 219 | 1310 | 48 |
17 | BENE232-50-15 | 150 | 250 | 50 | 232 | 1480 | 60 |
18 | BENE267-68-15 | 150 | 250 | 68 | 267 | 1500 | 74 |
19 | BENE279-80-15 | 150 | 250 | 80 | 279 | 1735 | 91 |
