- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:steel argon cylinder
- Material:Steel, seamless steel cylinder
- Brand Name:BEYIWOD
- Use:Oxygen
- Place of origin:Shanghai,China(mainland)
- Water Capacity:40L 47L 50L
- Working Pressure:150bar / 200bar
- Test Pressure:250bar / 300bar
- Outside Diameter:219MM/232MM
- Wall thickness:5.2mm/5.4mm/5.7mm/5.8mm
- Certification:ISO9809-1/ISO9809-3
- Weight without valve:48kg/50kg/52kg
- Height without valve:1305mm/1350mm/1430mm
Cylinder description
Steel gas Cylinder specification
| Type | 150bar/200bar 47L/50L/68L steel helium gas cylinder | ||
| Water capacity | 50Lhelium gas cylinder | Outer diameter | 232mm |
| Working pressure | 200Bar(20Mpa) | Height without valve | 1425mm |
| Test pressure | 300Bar(30Mpa) | Valve height/weight | About 100mm/0.5kg |
| Design wall thickness | 5.2mm | Weight without valve | 50.6kg |
| Gas volume | 10m³ | Material | 34CrMo4 |
| Color | White,blank,green,yellow and others as customer required. | ||
| Filling medium | oxygen/co2/nitrogen/argon gas | ||
| Packing | Nude packing ,wooden pallet | ||
| Delivery time | within 30Days | ||
Our steel gas cylinder always adopt to ISO9809-3andISO9809-1 standard,of course,our cylinder also can meet DOT3AAandEN-ISO9809-3andEN-ISO9809-1withCE Certificate(TUV/TPED approved) helium gas cylinder

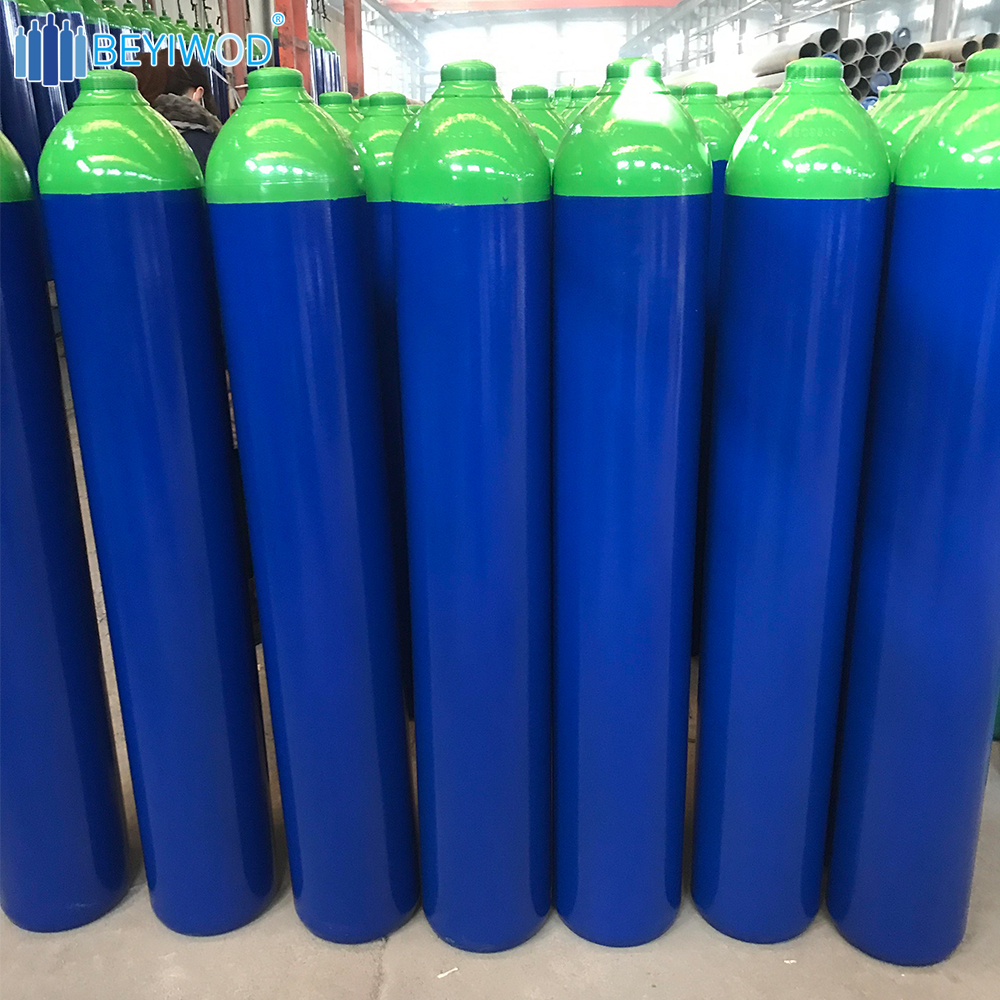

Empty steel gas cylinder with bright color for mix gas (argon gas +nitrogen gas)

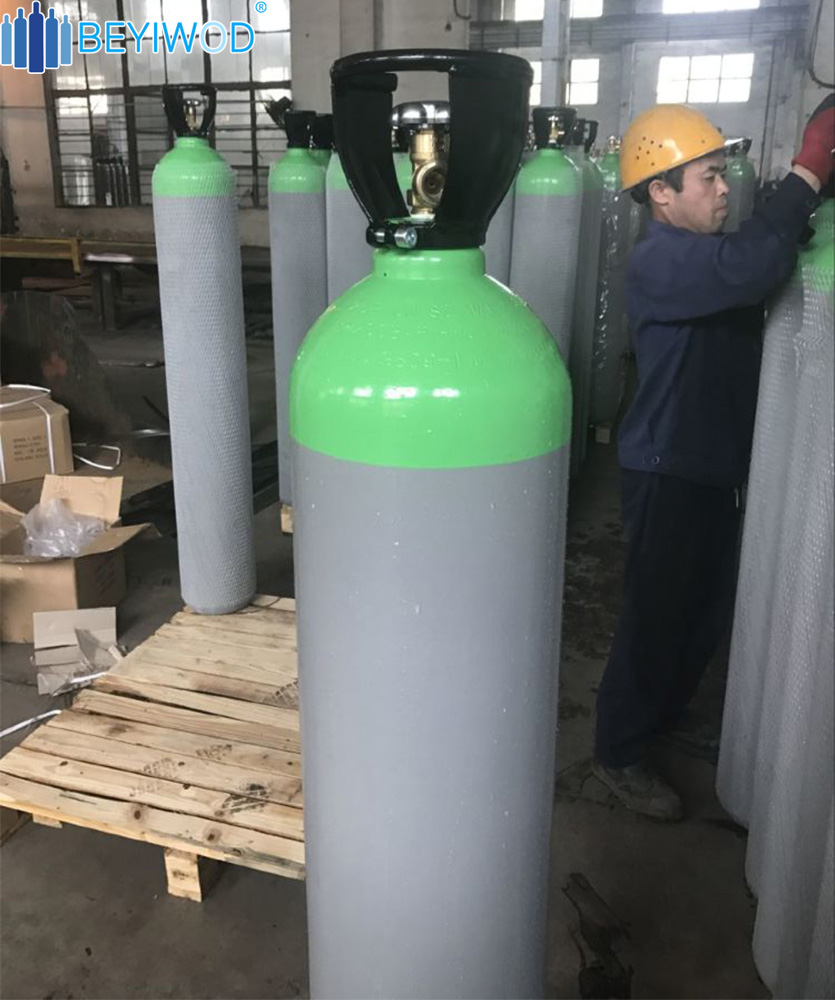

50L steel gas cylinder with valve and mental handle.this cylinder fro mix gas co2 gas +argon gas.steel helium gas cylinder

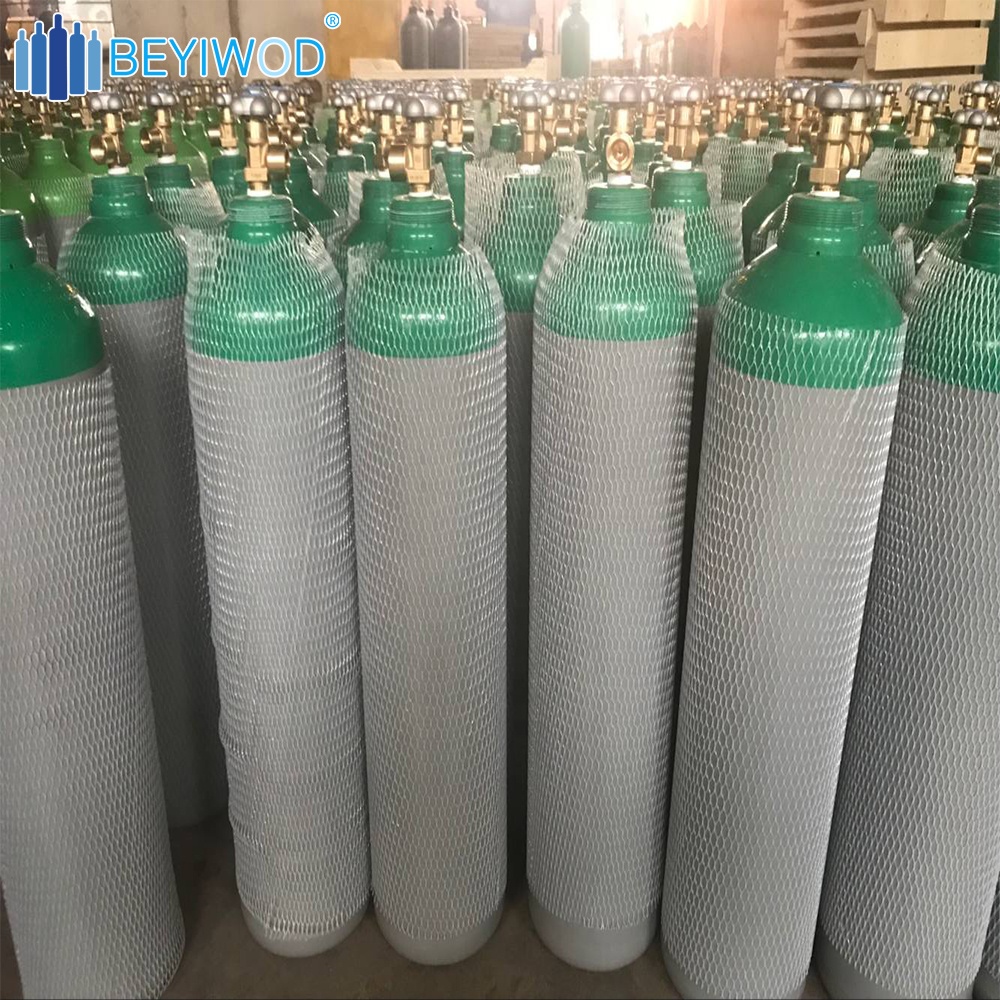

Argon gas cylinder argon cylinder

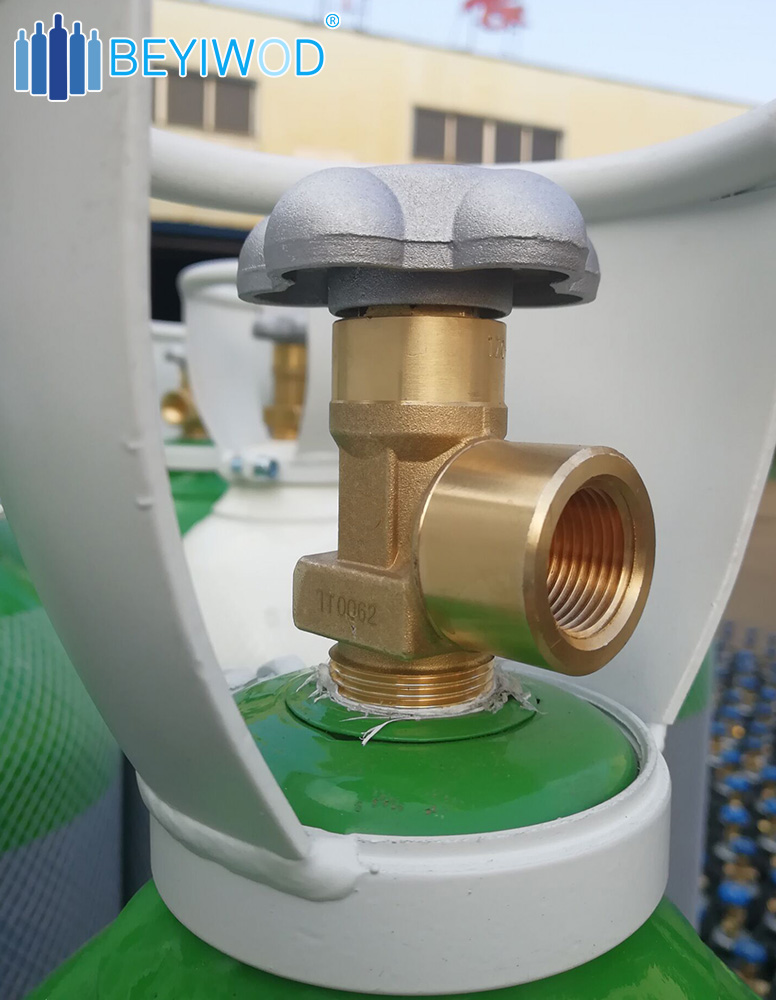

brass argon gas cylinder valve with pi mark.

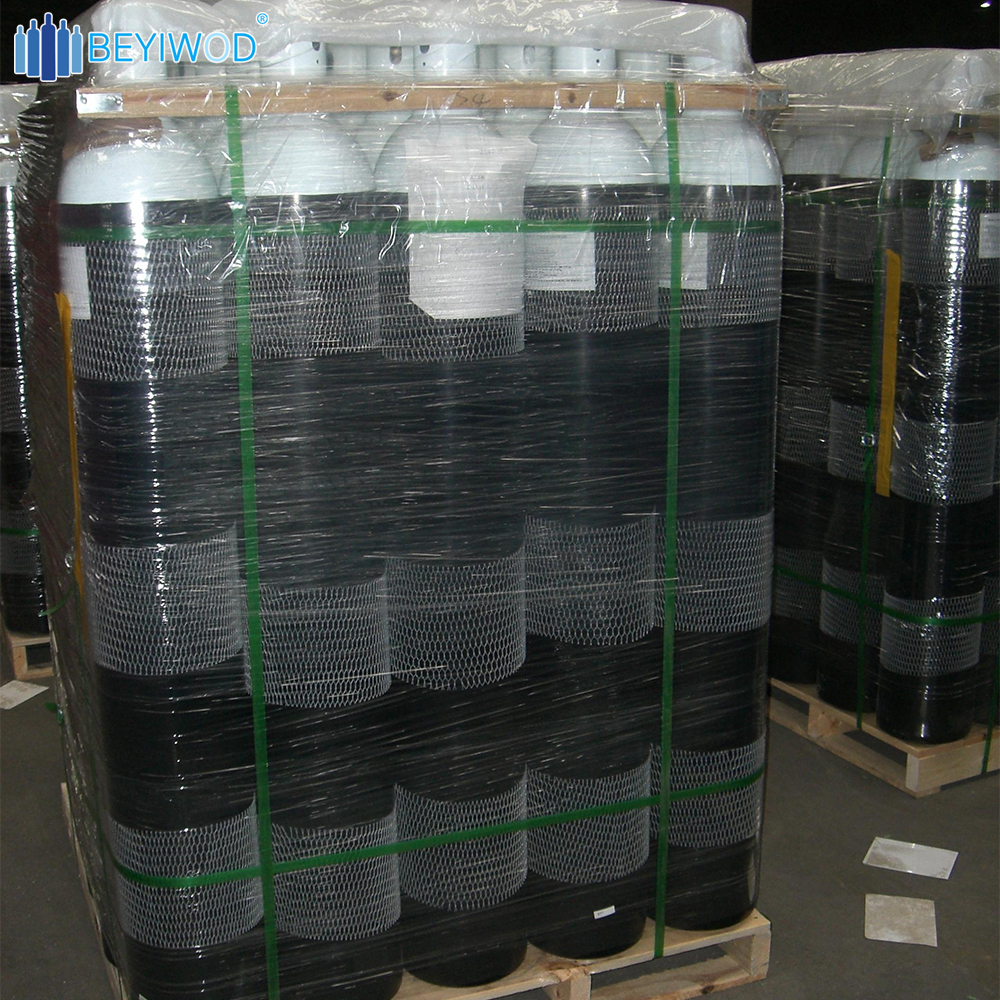

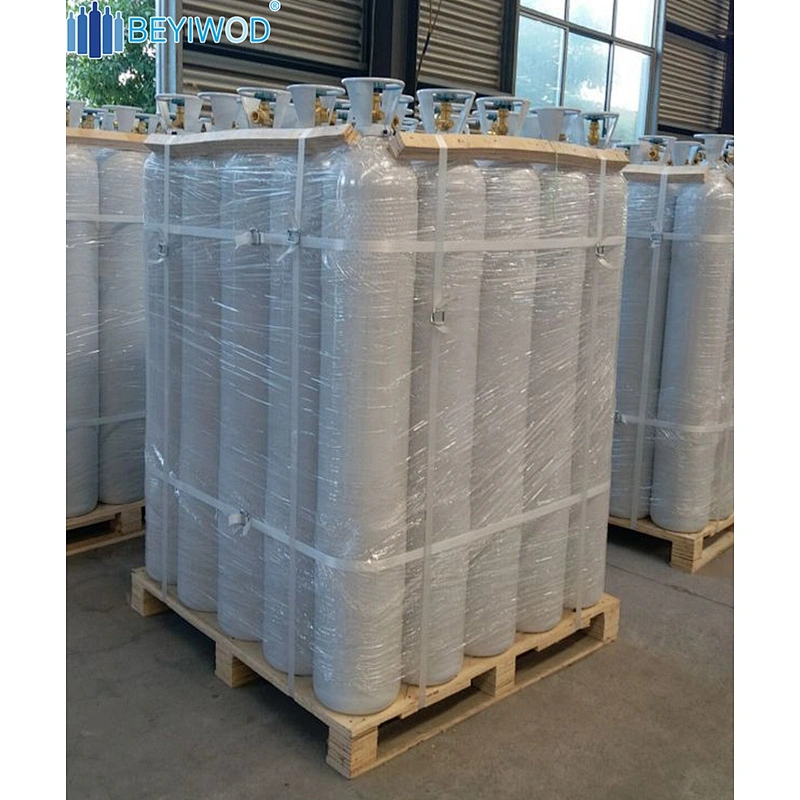

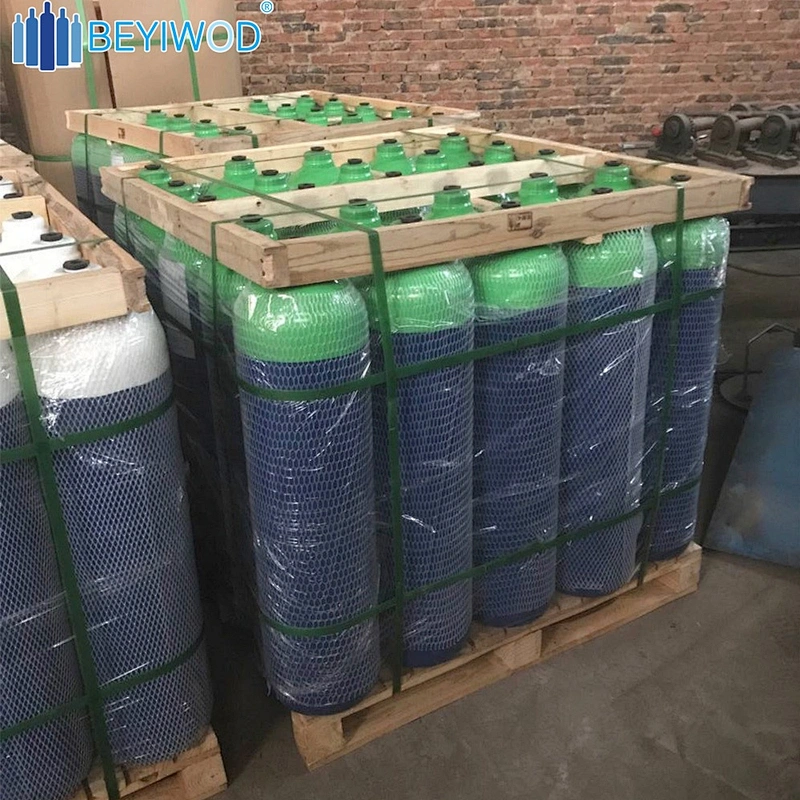

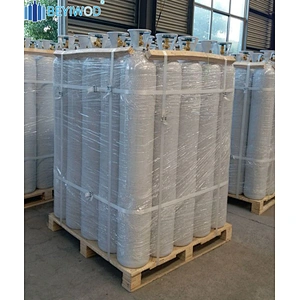

Big size steel gas cylinder packed with wooden pallet .
